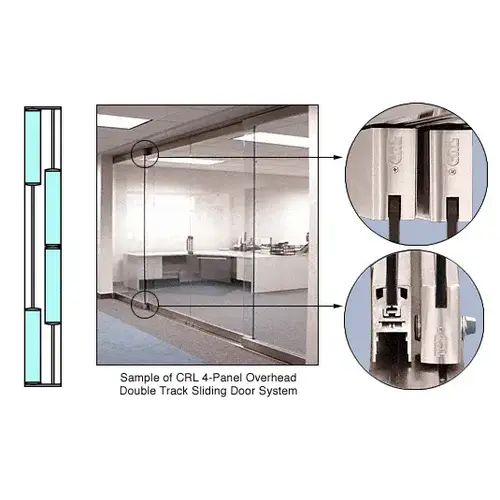

Polished Stainless 4-Panel Overhead Double Track Sliding Door System

Roll over image to zoom in

CRL 0TS24PS Polished Stainless 4-Panel Overhead Double Track Sliding Door System

Item #: 0TS24PS by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Four-Roller Units Silently Move the Door Rails
  • Provides a Flush Bottom Surface

Finish

Polished Stainless

Configuration

Double Track 4 Panel Bi-Part Bi-Pass

Door Top Rail (3/8 Inch Glass)

DR4SPS38C

Door Bottom Rail (1/2 Inch Glass)

DR4SPS12C

Door Top Rail (1/2 Inch Glass)

DR4SPS12C

Door Bottom Rail (3/8 Inch Glass)

DR4SPS38C

Finish/Color

Polished Stainless Steel

Maximum panel width

72

Glazing Thickness

3/8, 1/2


CRL Overhead Track Sliding Door Systems are available in four standard configurations. Each sliding panel is hung from two Cat. No. 0TCA carriage assemblies. Maximum panel weight not to exceed 225 lbs. (102 kg). Maximum panel width is 72" (1.83 m). Minimum panel width is 25" (635 mm).
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact DK Hardware Sales Department for additional information.

.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
