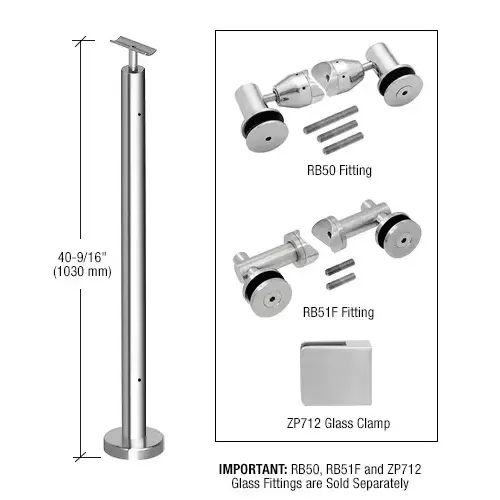

CRL P7F42EPS Polished Stainless 42" P7 Series End Post Railing Kit No Fittings
Item #: P7F42EPS by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Custom Post Heights Also Available
- For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
- Glass Attachment Fittings Sold Separately
- Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
- Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available
42" (1067 mm)
Overall Post Height
40-9/16" (1.03 m)
Polished Stainless Steel
Base Plate Cover Included
Base Plate Diameter (Inches)
Base Plate Thickness (Inches)
Base Plate Mounting Holes
Mounting Hole Diameter (Inch)
Mounting Hole Diameter
9/16 in. (14 mm)
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Thickness
3/8 in. (10 mm)
CRL's Surface Mounted Post Railing Kits are manufactured from Schedule 40 1.9" (48 mm) diameter Stainless Steel Tubing, and are designed for guard rail or hand rail applications. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 Hand Rail Tubing. Kits are supplied complete with a Base Plate, Base Cover Flange, and Welded Top Saddle. For screws to attach the Top Rail to the Saddle specify Cat. No. PRS1032. These 10-32 x 5/8" stainless steel screws come 50 per pack.
All P-Series Post Kits are sold without glass attachment fittings. Those must be purchased separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
