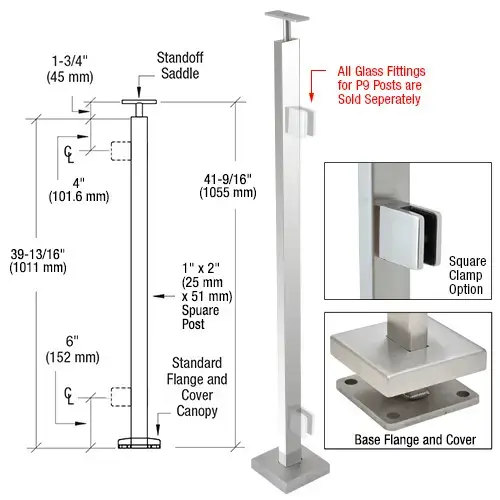

CRL P9 Surface Mounted Post Railing Kits are manufactured from 1" x 2" (25 mm x 51 mm) Stainless Steel Rectangular Tubing, and are designed for guardrail or handrail applications. Saddles support 1" x 2" (25mm x 51mm) stainless steel rectangular top rail. Kits are supplied complete with a base plate, base cover flange, and welded top saddle with vertical adjustment. For screws to attach the top rail to the saddle, specify Cat. No. PRS1032. These 10/32" x 5/8" stainless steel screws are sold 50 per pack.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL P942EPS Polished Stainless 42" P9 Series End Post Railing Kit
Item #: P942EPS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
- Glass Attachment Fittings Sold Separately
- Standard Post Height is 42" (1.07 m)
- Custom Post Heights Also Available
- Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available
Height
42" (1.07 m)
Finish
Polished Stainless
Grade
316
Material
Stainless Steel
Finish/Color
Polished Stainless Steel
Base Plate Length (Inches)
5
Base Plate Thickness (Inches)
3/8
Base Plate Mounting Holes
4
Mounting Hole Diameter (Inch)
9/16
Mounting Hole Diameter
9/16 in. (14 mm)
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Product Overview
CRL P9 Surface Mounted Post Railing Kits are manufactured from 1" x 2" (25 mm x 51 mm) Stainless Steel Rectangular Tubing, and are designed for guardrail or handrail applications. Saddles support 1" x 2" (25mm x 51mm) stainless steel rectangular top rail. Kits are supplied complete with a base plate, base cover flange, and welded top saddle with vertical adjustment. For screws to attach the top rail to the saddle, specify Cat. No. PRS1032. These 10/32" x 5/8" stainless steel screws are sold 50 per pack.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
