The CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

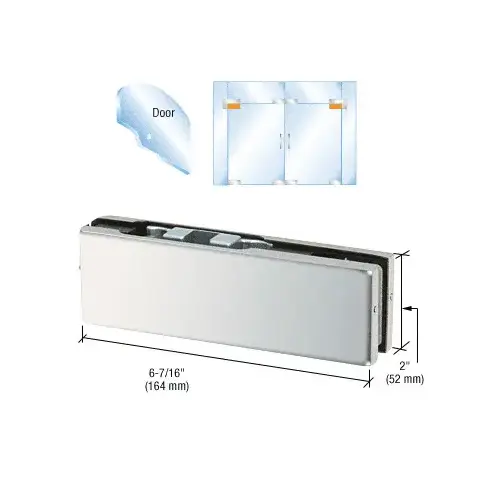

CRL PH21CPS Polished Stainless Adjustable European Top Door Patch Fitting
Item #: PH21CPS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 2-9/16" (65 mm) Pivot Setback
- Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
- For 3/8" or 1/2" (10 or 12 mm) Glass
Glass Thickness
3/8" or 1/2" (10 or 12 mm)
Finish
Polished Stainless
Pivot Backset (Inches)
2-9/16
Glazing Thickness
3/8, 1/2
Finish/Color
Polished Stainless Steel
Type
Top
Series
European
Pivot Setback
2-9/16
With Insert
Yes
Product Overview
The CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
