- Five Architectural Finishes
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- High Density Cast Body with Lock Mechanism
11/16" (17.5 mm)
Lock Bolt Diameter
5/8" (16 mm)
Polished Stainless Steel
The CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using theAMR206 Sidelite Mount Keeper. A variety of optional keepers, such as AMR207 and AMR208 are available to accommodate most types of installations.

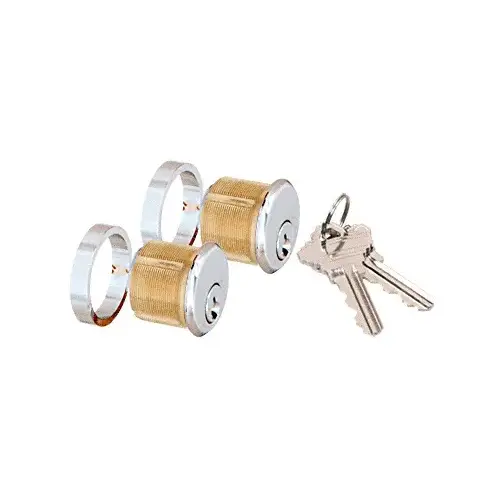

Optional Cylinders include either AMR205CC Double Keyed Cylinders or AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
