CRL PB007PS Polished Stainless Bullet Resistant Protective Barrier System 135 Bottom Mount Outside Clamp
Item #: PB007PS by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Create Your Own Complete Barrier System with CRL Components
- Made to Secure Bullet Resistant 1-1/4" (32 mm) Acrylic or Polycarbonate Barrier Systems in High-Security Applications
- Made of High Quality Stainless Steel to Provide Reliable Security
Height
2" (51 mm)
Shipping Weight
1 Lb (454g)
Width
2" (51 mm)
Finish
Polished Stainless
Type
135 degree Bottom Mount Outside
Panel To Panel Angle (Degrees)
135
Glazing Thickness
1-1/4
Material
Stainless Steel
Finish/Color
Polished Stainless Steel
CRL Protective Barrier Clamps are made to secure bullet resistant barrier systems in high - security applications. All clamps are made of high quality stainless steel to provide reliable security, are available in a variety of finishes, and provide an attractive design to your installation. Custom Clamps are available on special order for 3/4" (19 mm) thick glazing material.

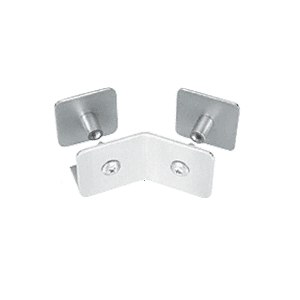

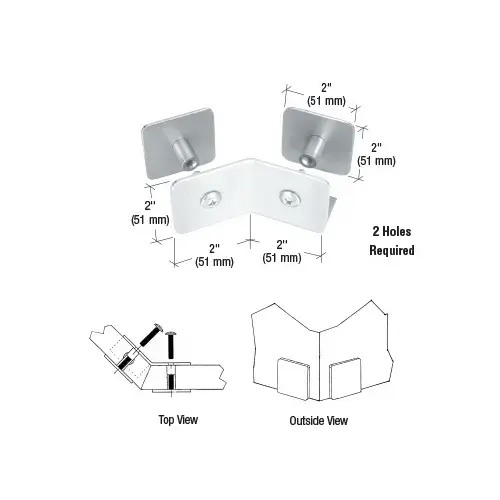

This CRL 135 Degree Bottom Mount Outside Clamp is made to secure bullet resistant acrylic or polycarbonate to the counter surface. Two screws secure the glazing material, and two screws secure the clamp to the counter surface. If the glazing material will sit flush on the counter, a notch for the base mounting plate is required. If the glazing material is not notched for the base mounting plate an 1/8" (3 mm) gap will be created.
SPECIFICATIONS:
Material: 11 Gauge Stainless Steel
Finishes: Brushed Stainless, Polished Stainless, Satin Chrome
Glazing: Use with 1-1/4" (32 mm) Acrylic or 1-1/4" (32 mm) Polycarbonate
Includes: Mounting Screws, Instructions
Glass Fabrication: 3/4" (19 mm) hole required.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
