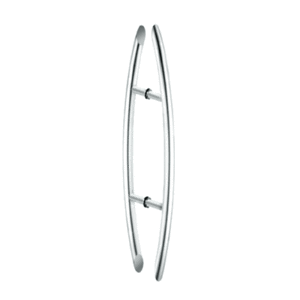

CRL CH18X18PS Polished Stainless Glass Mounted Crescent Mid-Mount Back-to-Back Pull Handle - 18" (457 mm)
Item #: CH18X18PS by CR Laurence
In Stock $201.76 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Extra Bolts Available, Sold Separately
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
Overall Length
18" (457 mm)
Mounting Holes Center-to-Center
9" (229 mm)
Finish
Polished Stainless
Center to Center
9
Glazing Thickness
3/8 To 3/4
Finish/Color
Polished Stainless Steel
Style Washers
Yes
Mounting Hole Diameter (Inches)
5/8
Style Washer Diameter (Inches)
1-1/4
Mounting Type
Back-To-Back
Material
Stainless Steel
Diameter
1-1/4"
Mounting Center To Center (Inches)
9
CRL Crescent Mid-Mount Pull Handle Series are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" thick tempered glass. Stock sizes range from 12", 18", and 24" length. Standard finishes are polished stainless and brushed stainless. The pulls are constructed of 1-1/4" diameter stainless-steel tubing.
SPECIFICATIONS:
For Use with:
3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1-1/4" (32 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish
Metal Washers and Rubber Gaskets
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
