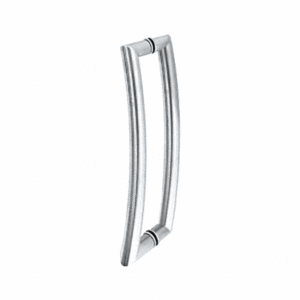

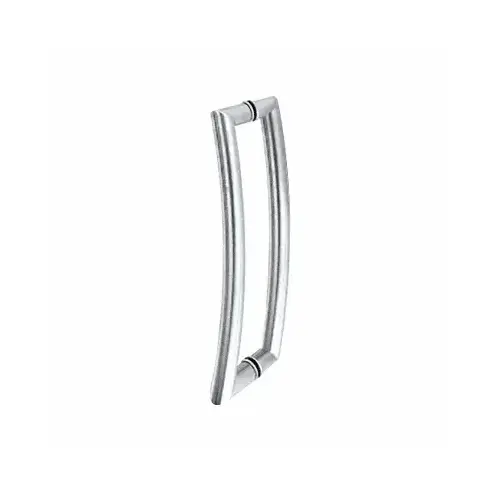

CRL RC12X12PS Polished Stainless Glass Mounted Curved Tubular Back-to-Back Pull Handle - 12" (305 mm)
Item #: RC12X12PS by CR Laurence
In Stock $126.45 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Extra Bolts Available, Sold Separately
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
Mounting Holes Center-to-Center
12" (305 mm)
Finish
Polished Stainless
Style Washer Diameter (Inches)
1-1/4
Style Washers
Yes
Center to Center
12
Glazing Thickness
3/8 To 3/4
Overall Length
13
Mounting Hole Diameter (Inches)
5/8
Finish/Color
Polished Stainless Steel
Mounting Type
Back-To-Back
Material
Stainless Steel
Diameter
1"
Mounting Center To Center (Inches)
12
CRL Curved Tubular Pull Handle are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" tempered glass. Stock sizes range from 12", 18" and 24" length. Standard finishes are polished stainless and brushed stainless. The pulls are constructed of 1" diameter stainless-steel tubing.
SPECIFICATIONS:
For Use with: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching
Finish Metal Washers and Rubber Gaskets
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
