CRL's Lever Lock Housings are easy-to-install and come complete with Housing and Lever Lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. The Entrance and Storeroom models are available with either a Schlage® 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Cores (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike is included.
• ANSI A156.2 Grade 1. UL10C and UBC 7.2
for Positive Pressure
• ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass Fabrication is required. Installation Instructions and Fabrication Template Included.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

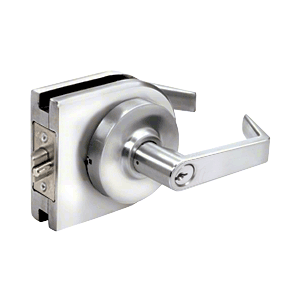

CRL LH70PS Polished Stainless Grade 1 Lever Lock Housing - Storeroom
Item #: LH70PS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Five Architectural Finishes Available
- Four Function Options
- Low Profile Body Design for Use with 3/8" or 1/2" (10 or 12 mm) Glass
- Non-Handed and Reversible
- Supplied with ANSI A156.2 Grade 1 or Grade 2 Lever Lock
Finish
Polished Stainless
Height
4-1/2
Width
5
Cover Style
Round
Glazing Thickness
3/8, 1/2
Finish/Color
Polished Stainless Steel
Product Overview
CRL's Lever Lock Housings are easy-to-install and come complete with Housing and Lever Lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. The Entrance and Storeroom models are available with either a Schlage® 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Cores (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike is included.
• ANSI A156.2 Grade 1. UL10C and UBC 7.2
for Positive Pressure
• ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass Fabrication is required. Installation Instructions and Fabrication Template Included.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
