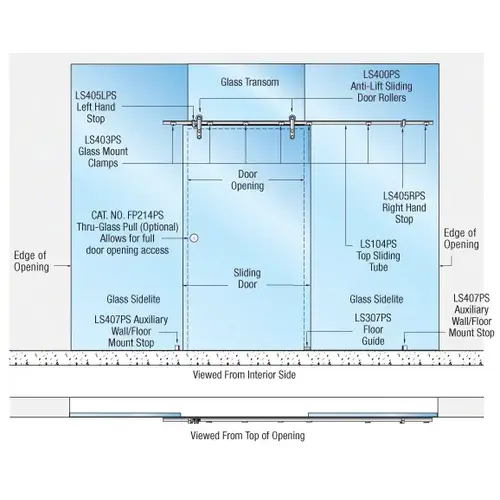

The CRL Laguna Series Glass Mount Single Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door in an 'all-glass' opening where you have a wall on one end next to the door, a glass transom above the door, and a fixed glass panel on the other side of the door. Bi-parting double doors are not possible for this application.
NOTE: Bi-parting double doors are not possible for this application.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3.2 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
Complete glass fabrication details and drawings are available by contacting our Technical Sales Department.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
EACH KIT CONTAINS:
Two CRL Laguna Series Anti-Lift Top Rollers with Glass Fittings
One CRL Laguna Series Top Sliding Tube with End Caps at 104" (2.64 m) in Length
One CRL Laguna Series Top Sliding Tube Wall Mount End Cap (Fastener to Wall is Not Included)
Six CRL Laguna Series Top Sliding Tube Glass Mount Clamps
Two CRL Laguna Series Door Stops (One Left Hand and One Right Hand)
One CRL Laguna Series Bottom Floor Guide
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
NOTE: These fittings are not for use with laminated glass.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL LSGM6PS Polished Stainless Laguna Series Single Sliding Door Glass Mount Installation Assembly
Item #: LSGM6PS by CR Laurence
See reviewsSee reviews
In Stock
$1,175.39
/eachSAVE UP TO 117.54
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Assembly Contains All Necessary Hardware to Complete the Installation with 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- Stainless Steel Construction
- New Anti-Lift Design
Shipping Weight
30 lb (13.61kg)
Finish
Polished Stainless
Type
Single Sliding Door
Maximum Panel Weight (Pounds)
100
Anti-Lift
Yes
Track Diameter (Inches)
1-1/4
Glazing Type
Tempered Insulated
Track Length
104
Mounting Type
Glass Mount
Door Attachment
Flush
Glazing Thickness
1/2 , 3/8
Material
Stainless Steel (Alloy 316)
Door Configuration
Single Door
Minimum Door Width (Inches)
37-13/16
Self-Closing
No
Finish/Color
Polished Stainless Steel
Maximum Door Height
98-7/16
Minimum Door Width
37-13/16 in. (960 mm)
Maximum Panel Weight
220 lbs. (100 kg)
Track Diameter
1-1/4 in. (32 mm)
Product Overview
The CRL Laguna Series Glass Mount Single Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door in an 'all-glass' opening where you have a wall on one end next to the door, a glass transom above the door, and a fixed glass panel on the other side of the door. Bi-parting double doors are not possible for this application.
NOTE: Bi-parting double doors are not possible for this application.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3.2 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
Complete glass fabrication details and drawings are available by contacting our Technical Sales Department.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
EACH KIT CONTAINS:
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
NOTE: These fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
