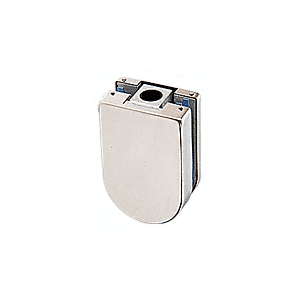

CRL PTH22PS Polished Stainless PTH Series Top Door Patch Fitting
Item #: PTH22PS by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- A Complete Selection for Single or Double Doors, Transoms, and Sidelites Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
Shipping Weight
1 lb (454g)
Finish
Polished Stainless

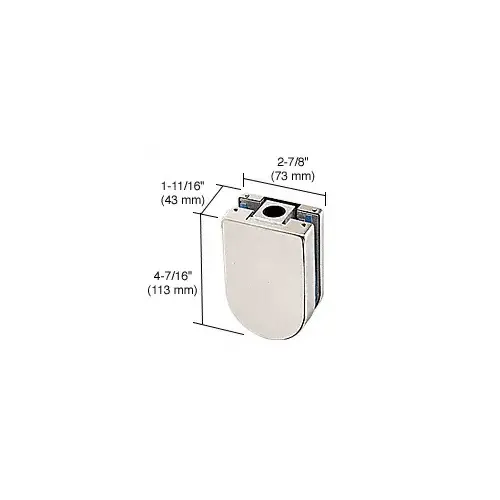

Height
4-7/16
Width
1-3/16
Glazing Thickness
3/8, 1/2
Finish/Color
Polished Stainless Steel
Type
Top
This CRL PTH Series Top Door Patch Fitting includes a high density cast body, pivot socket, finished cover plate, and gaskets for 3/8" and 1/2" (10 and 12 mm) glass. This fitting is commonly used with either a PTH23 Top Transom Pivot, CRL860 Walking Beam Pivot, 1NT401 Top Free Swinging Pivot, or 1NT405 Header Mount Top Pivot.
GLASS FABRICATION REQUIRED:
Two 13/16" (20 mm) Diameter Holes and One Notch (Template Included)
FOR USE WITH:
PTH23 Top Transom Pivot; CRL9040WBP Walking Beam Pivot; 1NT401 Top Free-Swinging Pivot; 1NT405 Header Mount Top Pivot
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
