CRL SR6SPS3812SL Polished Stainless Steel 6" x 120" Length Square Sidelite Rail 120" Stock Length
Item #: SR6SPS3812SL by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Reversible Extruded Saddle to Match 1/4" or 3/4" (6 or 19 mm) Door Clearances
- Provides Even Sightline With Our Door Rails
- Vinyl Provided to Use with 1/2" (12 mm) Glass; Vinyl for 3/8" (10 mm) Glass Ordered Separately
- Use Monolithic Tempered Glass
- Matching Door Rails Available for an Even Sightline
Length of Rail
120 in (3.05 m)
120" (3.05 m)
Polished Stainless Steel
Polished Stainless Steel
Floor Mount Saddle Included

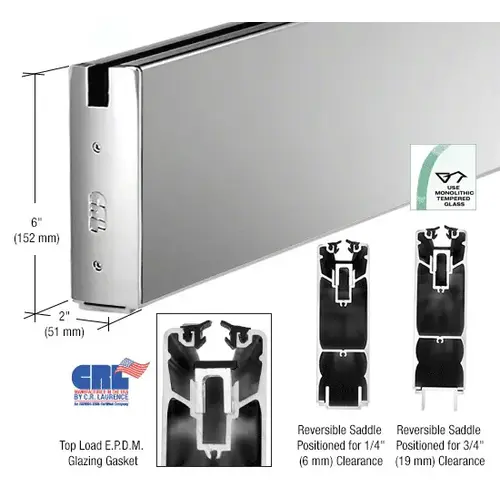

The CRL 6" (152 mm) Square Sidelite Rail is commonly used in office and storefront applications to secure fixed glass panels. Since the profile matches our Door Rails, these Sidelite Rails can be used top and bottom for a matching look, or with a variety of smaller configuration U-Channels. Glass is installed easily with the 'lift and drop' method using our 4" (102 mm) Aluminum and Neoprene Setting Blocks. Glass is secured with a Top Load EPDM Roll-in Glazing Gasket that eliminates the messy application of silicone sealant.
Roll-In Glazing Gasket for 1/2" (12 mm) glass is included. Both 3/8" (10 mm) Roll-In Glazing Gasket and End Caps are sold separately.
• Sidelite Rails on this page come with vinyl to glaze 1/2" (12 mm) glass. If using 3/8" (10 mm) glass, GG38 Series Vinyl must be ordered separately.
• All models are available in 120" (3.05 m) lengths. Selected finishes are also offered in 240" (6.1 m) lengths.
• Custom lengths and finishes are also available.
• SREC6S Series End Caps and Cat. No. UCSB4 Setting Blocks must be ordered separately.
Shown with End Caps which must be ordered separately. Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
