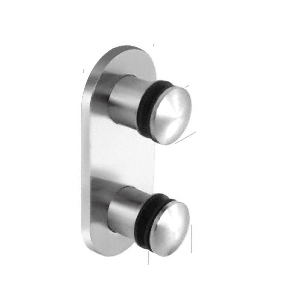

CRL RS0B25PS 316 Polished Stainless Steel Dome 2-3/8" Glass Rail Standoff Fitting With Mounting Plate
Item #: RS0B25PS by CR Laurence
In Stock $374.00 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using DuPont® SentryGlas® Interlayers
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using DuPont™ SentryGlas® Interlayers
- High Grade 316 Stainless Steel Alloy Standard
Mounting Plate Width
4 in. (101.6 mm)
Glass Fabrication
Two 3/4 in (19 mm) Diameter Holes Per Fitting
Mounting Plate Height
8 in. (203.2 mm)
Finish
Polished Stainless Steel
Type
Dome
Width
2
Base Plate Thickness (Inches)
3/8
Base Plate Length (Inches)
4
Material
316 Stainless Steel
Base Plate Height (Inches)
9-1/4
Finish/Color
Polished Stainless Steel
This Point Supported Standoff Fitting has a 4" x 9-1/4" (102 x 235 mm) back plate giving the installer more adjustment and four anchor points during installation for those tricky job site mounting conditions. The steel back plate can be fastened directly to steel, concrete, or wood substrates and includes a cover plate. This versatile Standoff Fitting features a 2-3/8" (60 mm) diameter domed cap with a 3/8"-16 threaded stainless steel rod to secure the glass panel.
The 2-3/8" (60 mm) diameter standoffs are mechanically fastened to a 3/8" (10 mm) thick 316 grade stainless steel back plate that is pre-drilled for mounting. Two popular stainless steel finishes are available from stock. If your customer has a special job site condition, custom diameters and lengths are also available. Attachment anchors for wood, concrete or steel are sold separately.
SPECIFICATIONS: For use with 1/2" or 3/4" (12 or 19 mm) Monolithic Tempered Glass. Also for use with 9/16" or 27/32" (13.52 or 21.52 mm). Laminated Tempered Glass using Kuraray SentryGlas® Interlayer (Do not use with raw or annealed glass).
GLASS FABRICATION: Two 3/4" (19 mm) Diameter Holes Per Fitting.
SPACING: Maximum horizontal spacing between fittings depends on its use and mounting conditions.
Product Warning:
For Use with 1/2" or 3/4" (12 or 19 mm) Tempered Glass (Do not use with raw or annealed glass). NOTE: Maximum Bracket Spacing is 24" (610 mm) on Center with 48" (1.22 m) Maximum Glass Panel Widths.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
