This CRL Z-Series Square Type Flat Base Glass Clamp with Repositionable Plate is designed to be used on glass thickness of 3/8" or 1/2" (10 or 12 mm). The flat base allows for installation onto square tubing or other flat surfaces. Material is constructed of 316 Stainless Steel.
SPECIFICATIONS:
Glass Thickness: 3/8" or 1/2" (10 or 12 mm)
For Use With: Flat Surfaces
Material: Stainless Steel 316 Alloy
Fabrication:
For 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Repositionable Plate (ZL Series only)
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

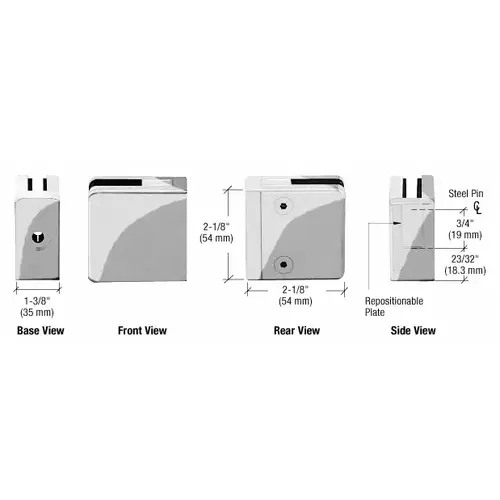

CRL ZL910PS Polished Stainless Steel Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate
Item #: ZL910PS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 3/8" or 1/2" (10 or 12 mm) Glass
- For Use with Square Tubing or Other Flat Surfaces
- Repositionable Plate for Use at Right or Left Corner of Glass
- Use Monolithic Tempered Glass
Height
2-1/8
Width
2-1/8
Finish
Polished Stainless Steel
Material
Zinc
Type
Fits 3/8" and 1/2" Glass
Depth
1-3/32
Glazing Thickness
3/8 to 1/2
Profile
Square
Finish/Color
Polished Stainless Steel
Product Overview
This CRL Z-Series Square Type Flat Base Glass Clamp with Repositionable Plate is designed to be used on glass thickness of 3/8" or 1/2" (10 or 12 mm). The flat base allows for installation onto square tubing or other flat surfaces. Material is constructed of 316 Stainless Steel.
SPECIFICATIONS:
For 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
