This CRL American T/B Door Patch (Less Insert) will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.
For Use with Top and Bottom Inserts:
1NT303 for top 1NT301 for bottom
Glass Fabrication Required:
One Corner Notch
Includes:
High Density Cast Body
Cover Plates (Finish of Your Choice)
Gaskets for 3/8" or 1/2" (10 or 12 mm)
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

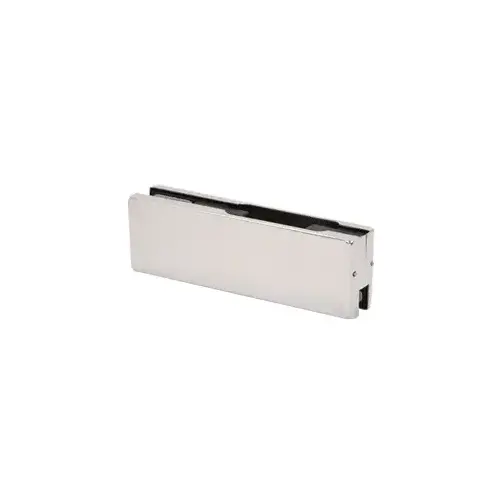

CRL AMR201PS Polished Stainless Top or Bottom Patch Fitting - Less Insert
Item #: AMR201PS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Use with Top and Bottom Inserts
- Gaskets for Use With 3/8" or 1/2" (10 or 12 mm) Glass
- High Density Cast Body
Shipping Weight
2 lb (907g)
Finish
Polished Stainless
Glazing Thickness
3/8, 1/2
Finish/Color
Polished Stainless Steel
Type
Top or Bottom
With Insert
No
Product Overview
This CRL American T/B Door Patch (Less Insert) will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.
For Use with Top and Bottom Inserts:
Glass Fabrication Required:
Includes:
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
