Powder Painted (Specify) Aluminum Clamp-On Frame Exterior Glazed Vision Window

Roll over image to zoom in

CRL C0VEP Powder Painted (Specify) Aluminum Clamp-On Frame Exterior Glazed Vision Window

Item #: C0VEP by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Custom Anodizing Available
  • Clamp-On Frame Vision Window Typically Used Above Built-In Exchange Drawers in Walk-Up Installations
  • Drawings and Specifications are Available Online

Customer to Specify

Customer to Specify

Finish

Powder Coated

Size

Specify

Finish/Color

Powder Coated

Type

Exterior Glazed

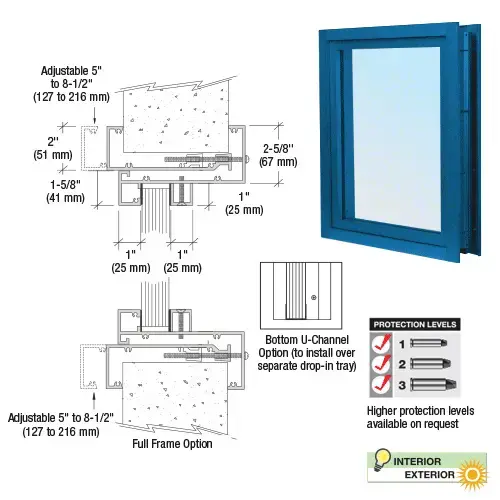

CRL Clamp-On Frame Vision Windows are designed for installation in wall openings having a thickness from 5" to 8-1/2" (127 to 216 mm). The frame has a uniform design on all four sides, and the selected glazing material will be sealed into the frame for a weather tight installation. Vision Windows are commonly installed above built-in Transaction Drawers or Package Receivers. Tightening screws on the interior side of the frame clamps the window securely in the opening. Can also be ordered with U-Channel only under the glazing to enable access to Drop-In Deal Trays. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors
Instructions Included

.
