CRL C01W12P Powder Painted (Specify) Aluminum Clamp-On Frame Interior Glazed Exchange Window with 12" Shelf and Deal Tray
Item #: C01W12P by CR Laurence
See reviews See
reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Clamp-On Frame Design Incorporates Surround Sound and Built-In Non-Ricochet Bullet Resistant Deal Tray
- Surround Sound System Allows Natural Voice Transmission
Customer to Specify
Customer to Specify
Shelf Life
12" (305 mm)
Finish
Powder Coated
Shelf Depth (Inches)
12
Glazed
Yes
Deal Tray Depth (Inches)
8 1/4
Finish - Shelf & Deal Tray
Brushed Stainless Steel
Deal Tray Width (Inches)
11
Deal Tray Height (Inches)
1-9/16
Finish/Color
Powder Coated
Glazing Type
Specify
Glazing Thickness
1/4 To 1-3/8
Size
Specify
Shelf Width
Overall Frame Width Less 4
Wall Thickness
5 To 8 1/2
Shelf Thickness
2

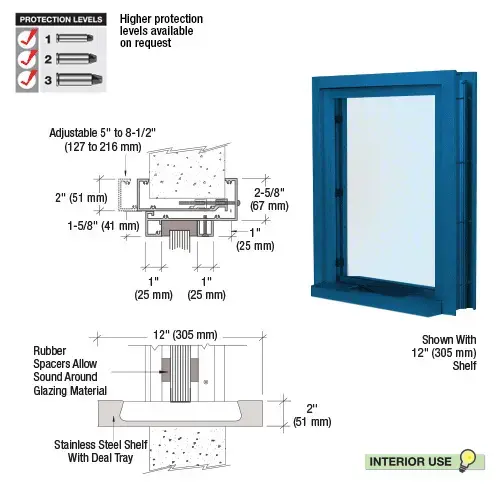

CRL Interior Glazed Clamp-On Frame Windows with Surround Sound Voice Transmission System and Brushed Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray. The extruded aluminum frame is intended for installation into walls 5" to 8-1/2" (127 to 216 mm) thick. Typical shelf depths are 12" and 18" (305 mm and 457 mm). Added depth of the 18" (457 mm) shelf gives customer a convenient writing surface. Tightening screws on the interior side of the frame clamps the window securely in the opening. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized or Duranodic Bronze; RAL Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included
Product Warning:
CRL recommends a maximum width of 36" (914 mm) when surround sound is used.
.
