CRL Multi-Lite Narrow Inset Frame Windows are commonly used for installations with multiple workstations, such as those found in walk-up ticket offices in arenas, stadiums, movie theatres, and museums. Window options include speak-thrus, deal trays, shelves, drop downs, returns, and more. Narrow Inset Frame is designed for installation into walls at least 4" (102 mm) thick. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard ; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard ; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard ; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

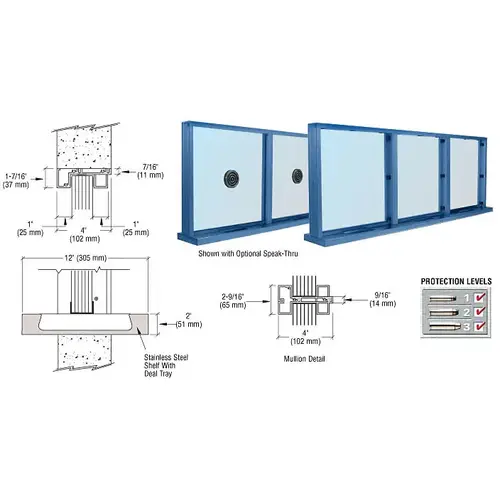

CRL N1SWP Powder Painted (Specify) Aluminum Narrow Inset Frame Multi-Lite Special Window
Item #: N1SWP by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Drawings and Specifications are Available Online
- Narrow Inset Multi-Lite Frame with Shelf and Deal Tray Designed for Windows Joined Together for Multiple Position Workstations
- Powder Coat Painted, You Specify Color
Overall Size (w x h)
Customer to Specify
Finish
Powder Coated
Shelf Thickness
2
Material
Aluminum
Shelf Width
Overall Frame Width
Window Style
Fixed Multi Lite
Size
Specify
Glazing Thickness
1/4 To 1-1/4
Frame Depth
4
Protection Level
Specify (1,2,3)
Glazing Type
Specify
Finish/Color
Powder Coated
Optional Speak-Thru
Specify
Deal Tray Included
Non-Ricochet Bullet Resistant Deal Tray
Glazed
Yes
Shelf Depth (Inches)
12
Product Overview
CRL Multi-Lite Narrow Inset Frame Windows are commonly used for installations with multiple workstations, such as those found in walk-up ticket offices in arenas, stadiums, movie theatres, and museums. Window options include speak-thrus, deal trays, shelves, drop downs, returns, and more. Narrow Inset Frame is designed for installation into walls at least 4" (102 mm) thick. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard ; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard ; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard ; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included
