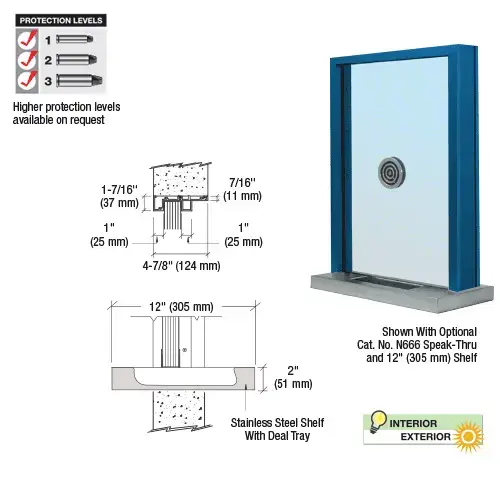

CRL Exterior Glazed Standard Inset Frame Windows have a Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray for passing currency, credit cards, tickets, and small articles. The extruded aluminum frame is designed for installation into walls at least 4-7/8" (124 mm) thick. The shelf is typically made in depths of 12" or 18" (305 or 457 mm). The added depth of the 18" (457 mm) shelf provides a convenient writing surface on the customer's side. All windows are shipped with the glazing material temporarily glazed. The installer mounts the frame and shelf, then permanently seals the glazing material with the provided glazing tape.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard ; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard ; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard ; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection, Weather Flap/Drain Hole Options Available.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL S1EW12P Powder Painted (Specify) Aluminum Standard Inset Frame Exterior Glazed Exchange Window with 12" Shelf and Deal Tray
Item #: S1EW12P by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Custom Anodizing Available
- Standard Inset Frame with Shelf and Built-In Non-Ricochet Bullet Resistant Deal Tray
Customer to Specify
Customer to Specify
Overall Size (w x h)
Customer to Specify
Finish
Powder Coated
Shelf Size
12"
Frame Height
Specify
Glazing Thickness
1/4 To 1-7/8
Frame Width
Specify
Glazing Type
Specify
Finish/Color
Specify
Deal Tray Height (Inches)
2
Deal Tray Included
Level 1 or Level 3 Protection
Deal Tray Depth (Inches)
12
Glazed
Yes
Deal Tray Depth
12 in. (304.8 mm)
Deal Tray Height
2 in. (50.8 mm)
Product Overview
CRL Exterior Glazed Standard Inset Frame Windows have a Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray for passing currency, credit cards, tickets, and small articles. The extruded aluminum frame is designed for installation into walls at least 4-7/8" (124 mm) thick. The shelf is typically made in depths of 12" or 18" (305 or 457 mm). The added depth of the 18" (457 mm) shelf provides a convenient writing surface on the customer's side. All windows are shipped with the glazing material temporarily glazed. The installer mounts the frame and shelf, then permanently seals the glazing material with the provided glazing tape.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard ; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard ; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard ; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection, Weather Flap/Drain Hole Options Available.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
