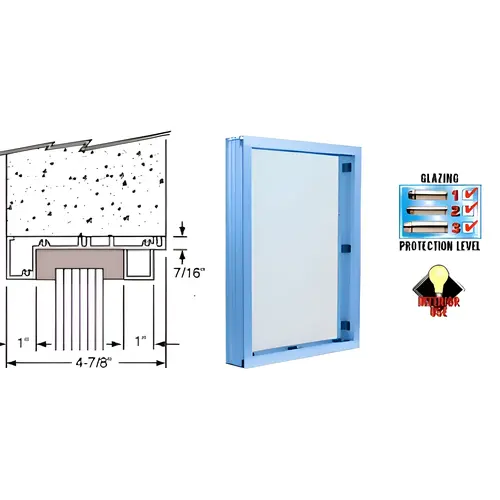

CRL Standard Inset Frame Vision Windows with Surround Sound allow natural voice transmission without an installed speak-thru device. Vision Windows are typically installed above built-in Exchange Drawers, or as sidelites in Multi-Lite Exchange Window units. Frame is designed for walls at least 4-7/8" (124 mm) thick. They are not weather tight, and are recommended for installation only in interior applications. The frame is uniform on four sides. Securing the frame to the wall requires the removal and installation of the glazing material and spacer blocks. Can also be ordered with U-Channel only under glazing to enable access to Drop-In Deal Trays.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard ; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard ; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR Paint Colors
Instructions Included
Product Warning:
CRL recommends a maximum width of 36" (914 mm) when surround sound is used.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL Powder Painted (Specify) Aluminum Standard Inset Frame Interior Glazed Vision Window
Item #: S1V1P by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Standard Inset Frame Vision Window with Surround Sound System to Allow Natural Voice Transmission
- Custom Anodizing Available
- Drawings and Specifications are Available Online
Customer to Specify
Customer to Specify
Overall Size (w x h)
Customer to Specify
Finish
Powder Coated
Frame Type
Standard Inset
Size
Specify
Glazing Type
Glazing -1/4" Glass; 1-5/16" Level 1 Glass; 1-1/4" Level 1 Acrylic; 3/4" Level 1 Lexgard®; 1" Level 2 Lexgard®; 1-3/16" Level 3 Glass Clad Polycarbonate; 1-1/4" Level 3 Lexgard®
Protection Level
Specify (1,2,3)
Recommendations
CRL Recommends A Maximum Width Of 36" When Surround Sound Is Used
Finish/Color
Powder Coated
Wall Thickness
Minimum 4 7/8
Product Overview
CRL Standard Inset Frame Vision Windows with Surround Sound allow natural voice transmission without an installed speak-thru device. Vision Windows are typically installed above built-in Exchange Drawers, or as sidelites in Multi-Lite Exchange Window units. Frame is designed for walls at least 4-7/8" (124 mm) thick. They are not weather tight, and are recommended for installation only in interior applications. The frame is uniform on four sides. Securing the frame to the wall requires the removal and installation of the glazing material and spacer blocks. Can also be ordered with U-Channel only under glazing to enable access to Drop-In Deal Trays.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard ; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard ; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR Paint Colors
Instructions Included
Product Warning:
CRL recommends a maximum width of 36" (914 mm) when surround sound is used.
