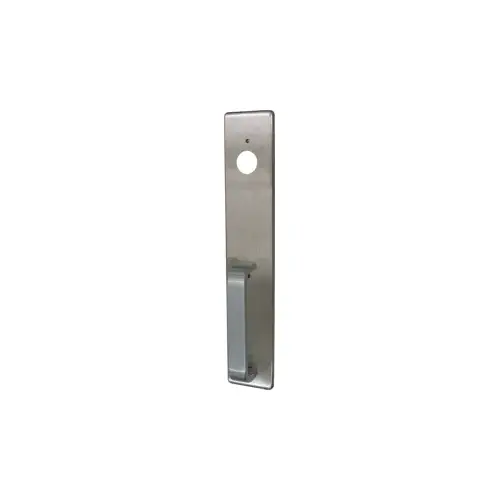

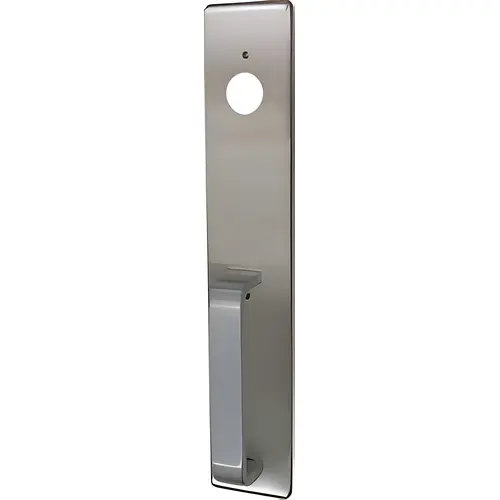

Precision Hardware 1703A-630 1703A Exit Device Trim
Item #: 1703A-630 by Precision, Inc
In Stock $349.60 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Satin Stainless Steel
Handing
Non-Handed
Function
03-Night Latch
Cylinder Type
Conventional or IC
Trim Design
Escutcheon with Pull Handle
Finish Description
Satin Stainless Steel
Device Type
Rim or SVR
Product Type
Exit Device Trim
Grade
ANSI/BHMA Grade 1
For Use With
APEX 2000 Series; Olympian Series
Hand
Non-Handed
Warranty
5 yr Mechanical, 3 yr Finish
ADA Compliant
No
Finish Family
Stainless Steel
Standards
ANSI A156.3 Grade 1
Cylinder Type Used
Conventional or IC
Device Trim Function
Key Retracts Latchbolt
Function Family
Night Latch Exit Device Trim
Device Trim ANSI Function
03
Trim Plate Width
2-3/4 Inch
Trim Plate Height
15 Inch
Features
Wrought Plates and Extruded or Cast Solid Grips
Manufacturer Parent
DormaKaba
Sub-Series
EDT_Device_Trim_Precision_Hardware_1
exit device type
Exit Trim
Alternate Part Number-1
132175
Trim Style
Pull Trim
Precision 1703A Night latch pull with escutcheon for Apex Grade 1 wide stile exit devices. Night latch function key retracts latch. Exterior remains locked.
SpecificationsMade from top-quality materials and with hardened steel hex dogging assembly, the Apex 2000 delivers durable, low maintenance performance.
Investment cast construction and vandal-resistant trim deliver maximum protection against forced entry without impeding easy exit.
We designed the Apex 2000 for a smooth appearance—no exposed fasteners and very low-profile end caps—that won’t pinch, catch, or snag during operation.
Designed with fewer moving components, the Apex 2000 requires much lower maintenance than comparable products.
DBHMA/ANSI Certified and UL® Listed
