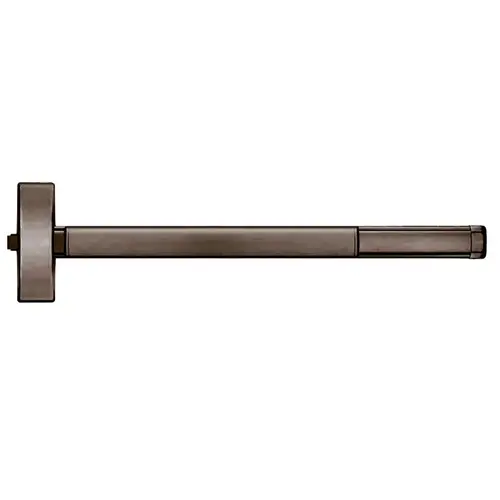

Precision Hardware 2103-613-36 2103 Rim Exit Device Less Trim Oil Rubbed Dark Bronze

APEX 2000 Series Heavy-Duty Exit Device

Thanks to its efficient engineering and durable hardware, the APEX 2000 represents the ultimate in safety, security and simplicity.

No other exit device offers the level of functionality and dependability as this Grade 1, heavy-duty exit device. Built with fewer components and in various door configurations, the APEX 2000 provides smoother operation with minimal need for maintenance. The APEX 2000's durable construction allows it to withstand high traffic and high use on a regular basis, making it highly regarded by architects and particularly attractive for healthcare and education buildings. These combined benefits give it a longer life span and a lower overall cost of ownership.

All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. Several models are also certified for hurricane resistant applications.

A complete offering of mechanical and electrical options provide a wide range of exit device security solutions. However, the traditional core strengths of the product can’t be overstated. Simple operation with few moving parts, manufactured with true ANSI/BHMA architectural finishes. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation.

Quiet Operation:

Sound Dampeners reduce the noise associated with Exit Device operation on the depression and return stroke of the Touchpad.

Touchbar Clearance:

The Apex Wide Stile Series Exit Devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4 beyond the face of the door. The Active Case and End Cap Mounting Bracket are mounted on the face of the door without shims or without cutting the glass molding. These devices have a 1/4” gap between the face of the door and the Touchbar Assembly. This gap allows proper functioning of the devices even on doors which are not perfectly flat. Since the Active Case is mounted directly on the face of the door, it accommodates standard lengths of through bolting screws, thumbpieces, knob & lever Trim fingers, and cylinder tail pieces.

Features:Secure:

Investment cast steel chassis provides maximum security against forced entry and reduces the risk of bending

Retrofit:

Universal active case and end cap mounting holes enable the PRECISION APEX 2000 series to retrofit other manufacturers’ devices

Aesthetically-Appealing:

Low profile end caps and smooth contour with true brass, bronze or stainless steel material provide a pleasing design

Dependable:

Successfully completed 10 million operational cycles—far exceeding the minimum 500,000 cycles required by Grade 1 standards

Low Maintenance:

Few moving parts with single spring push-bar operation means no parts or maintenance kits are required

Apex 21 Series - Nonhanded:

The 21 Series Device is designed to be compatible with many manufacturers’ Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotationrequired to retract the latch is a minimum of 50 degrees. Consult factory for details.

APEX 2100 Series SpecificationsDoors:

For all types of single and double doors with a mullion. Available for 1-3/4” to 2-1/4” thick, up to 4’-0” wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4” thick, 3’-0” wide opening.

Device:

Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Functions:

Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.

Double Cylinder:

Handed, “10” Function available. Requires two rim type cylinders, not furnished standard.

Base Material:

The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:

Investment Cast Steel, Zinc Dichromated.

Latchbolt:

Stainless Steel, Deadlocking, 3/4” throw.

Strikes:

No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering.

Dogging:

1/4” turn hex key dogging standard.

Touchbar Height:

39-15/16” from floor standard. May be varied as situation dictates.

Reversible:

Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:

Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA:

Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes:

605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Cylinders:

Rim Type, not furnished standard. Specify when required.

Retrofit Applications:

The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2108 R4908A). Consult factory for details.

Apex 21 Series - Nonhanded:

The 21 Series Device is designed to be compatible with many manufacturers’ Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotationrequired to retract the latch is a minimum of 50 degrees. Consult factory for details.

Options/Trims: Device Options:

• C - Pre-terminated Quick Connect Plug
• DE - Delayed Egress
• E - Electric Lock/Unlock
• ELR - Electric Latch Retraction
• MLR - Motorized Latch Retraction
• LS - Latchbolt Monitoring Switch
• Q - Wireless Access Management System
• TS - Touch Bar Monitoring Switch
• WTS - Weatherized Touchbar Switch
• ALK - Battery Powered Alarm
• ALW - Hardwired Alarm
• DS - Door Position Switch
• WALW - Weatherized Alarm

To specify add Prefix to Device No. (e.g. TS2103)

Device Options (Suffixes)

• ALK - Exit Alarm: battery operated
• ALW - Exit Alarm: remote power
• BRL - Braille Touchbar
• CD - Cylinder Dogging
• DS - Door Position Monitoring Switch
• LD - Less Dogging
• SEC - Security Screws
• SNB - Sex Nut and Bolt
• WALW - Weatherized Exit Alarm: remote power

To specify add Suffix to Device No. (e.g. 2103CD)

Trims 1700/2000

• 1700A "A" Grip
• 1700B "B" Grip
• 1700C "C" Grip
• 2000C "C" Grip

All Trims are furnished with wrought plates and extruded or cast solid grips.

Specify Grip Design (A,B,C) (“A” Grip furnished standard for 1700 Series Trim, “C” Grip furnished standard for 2000 Series Trim)

630 Trim is furnished for 628 Devices.

626 Trim is furnished for 626W Devices.

• Retrofit Applications
• The R1700 Series Trim is designed to retrofit into other manufacturers’ installationswhen used with the wide stile Apex Series Devices. Consult factory for details.

Trims 4900

• 4900A "A" Level
• 4900B "B" Level
• 4900C "C" Level
• 4900D "D" Level
• 4900K "K" Knob

All the escutcheons and levers are castings or forgings.

Specify Lever or Knob Design (A,B,C,D,K) and Handing (“A” Lever x RHRB furnished standard)

26 Trim furnished for 626W, 628 and 630 Devices.

• V4908A
• Vandal Resistant Trim
• A heavy duty lever trim designed to withstand abuse and vandalism.Composed of extra strength shock-absorbing “overload” springs and heavyduty investment cast stainless steel internal components. Lever returns to the“home” position eliminating the need to reset the lever.

• Retrofit Applications
• The R4900 Series Trim is designed to retrofit into other manufacturers’installations when used with the wide stile Apex Series Devices.Consult factory for details.
• Trims are BHMA certified for ANSI 156.3, Grade 1.
• Trims are through bolted and will cover 161 and 86 cutouts (except for 2000C Trim).
• Cylinder, Rim Type, not furnished standard.
