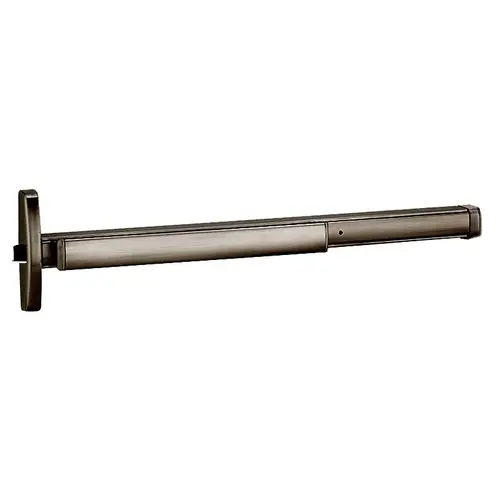

Precision Hardware 2408-613-36 2408 Rim Exit Device - Narrow Stile

APEX 2000 Series Heavy-Duty Exit Device

Thanks to its efficient engineering and durable hardware, the APEX 2000 represents the ultimate in safety, security and simplicity.

No other exit device offers the level of functionality and dependability as this Grade 1, heavy-duty exit device. Built with fewer components and in various door configurations, the APEX 2000 provides smoother operation with minimal need for maintenance. The APEX 2000's durable construction allows it to withstand high traffic and high use on a regular basis, making it highly regarded by architects and particularly attractive for healthcare and education buildings. These combined benefits give it a longer life span and a lower overall cost of ownership.

All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. Several models are also certified for hurricane resistant applications.

A complete offering of mechanical and electrical options provide a wide range of exit device security solutions. However, the traditional core strengths of the product can’t be overstated. Simple operation with few moving parts, manufactured with true ANSI/BHMA architectural finishes. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation.

Quiet Operation:

Sound Dampeners reduce the noise associated with Exit Device operation on the depression and return stroke of the Touchpad.

Touchbar Clearance:

The Apex Wide Stile Series Exit Devices accommodate doors with vision lites or glass windows where the vision lite frames or moldings project up to 1/4 beyond the face of the door. The Active Case and End Cap Mounting Bracket are mounted on the face of the door without shims or without cutting the glass molding. These devices have a 1/4” gap between the face of the door and the Touchbar Assembly. This gap allows proper functioning of the devices even on doors which are not perfectly flat. Since the Active Case is mounted directly on the face of the door, it accommodates standard lengths of through bolting screws, thumbpieces, knob & lever Trim fingers, and cylinder tail pieces.

Features:Secure:

Investment cast steel chassis provides maximum security against forced entry and reduces the risk of bending

Retrofit:

Universal active case and end cap mounting holes enable the PRECISION APEX 2000 series to retrofit other manufacturers’ devices

Aesthetically-Appealing:

Low profile end caps and smooth contour with true brass, bronze or stainless steel material provide a pleasing design

Dependable:

Successfully completed 10 million operational cycles—far exceeding the minimum 500,000 cycles required by Grade 1 standards

Low Maintenance:

Few moving parts with single spring push-bar operation means no parts or maintenance kits are required

APEX 2400 Series SpecificationsDoors:

For all types of single and double doors with a mullion. Available for 1-3/4” to 2-1/4” thick, up to 4’-0” wide opening. For thicker door, consult factory. Furnished standard for 1-3/4” thick, 3’-0” wide opening.

Functions:

A Universal Exit Device. Add Trim for desired function.

Base Material:

The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:

Investment Cast Steel, Zinc Dichromated.

Latchbolt:

Stainless Steel, Deadlocking, 3/4” throw.

Strikes:

No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, optional for Hollow Metal Door or Mullion applications, please specify when ordering.

Dogging:

1/4” turn hex key dogging standard.

Touchbar Height:

39-15/16” from floor standard. May be varied as situation dictates.

UL Listed:

Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA:

Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes:

605, 606, 612, 613, 622, 625, 626W, 628, 630, 690.

Cylinders:

Rim Type for “03” function, Mortise type for “08” function. Use 1-1/4” long standard mortise cylinder. Cylinders are not furnished standard. Specify when required.

Options/Trims: Device Options:

• C - Quick Connect Plug
• DE - Delayed Egress
• ELR - Electric Latch Retraction
• FL - Fire Exit Hardware
• MLR - Motorized Latch Retraction
• TDS - Touchbar Monitoring Double Switch
• TS - Touch Bar Monitoring Switch
• WTDS - Weatherized Touchbar Mon. Dbl. Switch
• WTS - Weatherized Touchbar Switch

To specify add Prefix to Device No. (e.g. TS2403)

Device Options (Suffixes)

• ALK - Exit Alarm: battery operated
• ALW - Exit Alarm: remote power
• BRL - Braille Touchbar
• CD - Cylinder Dogging
• DS - Door Position Monitoring Switch
• LD - Less Dogging
• SEC - Security Screws
• SNB - Sex Nut and Bolt
• WALW - Weatherized Exit Alarm: remote power

To specify add Suffix to Device No. (e.g. 2403CD)

Trims 2900/2000

• 2900A "A" Grip
• 2900B "B" Grip
• 2900C "C" Grip
• 2900D "D" Grip
• 2000C "C" Grip

Trims are BHMA certified for ANSI 156.3, Grade 1.

Cylinder, not furnished standard – Rim type for “03” function, 1-1/4”long mortise type for “08” function.

All the escutcheons and levers are castings or forgings.

For Lever Trim specify Lever Design (A, B, C, D) and Handing (“A” Lever RHRB furnished standard).

For 2900 Series Trim, 626 finish is furnished for 628 and 630 Devices.

2000 Series Trim is furnished with a wrought plate and extruded solid “C” Grip.
