Precision Hardware CM150-08 Control Module

Item #: CM150-08 by Precision, Inc

See reviewsSee reviews
See reviews summary
In Stock

$354.45

/each
SAVE UP TO 35.45

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 45 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Product Type

Access Control Part/Accessory

Series

Parts/Accessories

Power Source

5-24VDC or VAC, 0.005 Amp (Input); Current Pulse: 4.75 Amp, Continuous: 3.6 VDC/0.8 Amp (Output)

Manufacturer Parent

DormaKaba

For Use With

ELR150 Series Power Supply

Sub-Series

CM150-08

ADA Compliant

No

Function Family

Part/Component

Standards

Listed Fire Detecting Device

Voltage

24 VDC

Features

Time Delay Provides a Variable Latch Retraction Period in Response to a Momentary Input; Minimum Pulse Width: 0.25 Seconds; User Selectable: 0-4 Minutes Delay After Input is Removed; Provides Immediate Termination of Output

Access Type

Power Supply Module

Alternate Part Number-1

142489

Voltage/Amp Rating

5 - 24V AC/DC

Height

3.13

Length

5.13

Width

3.63

Product Overview
CM150-08 Control Module ELR Power Supply Accessories

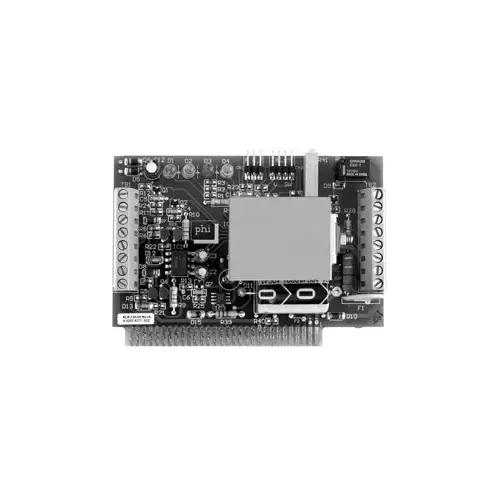

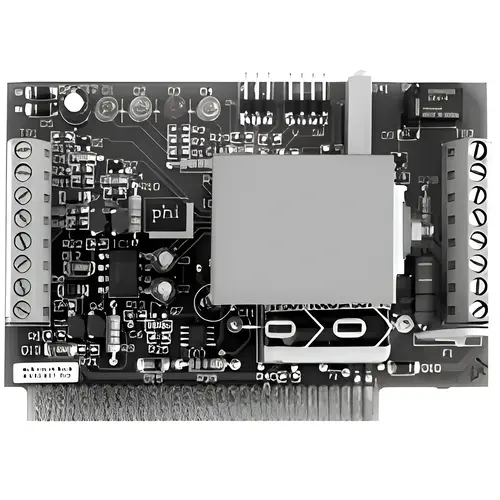

The CM150-08 Control Module is a card that is installed in the ELR150 Series Power Supply and controls one ELR device and includes a Time Delay Feature. The Time Delay provides a variable Latch Retraction period in response to a momentary input.

Specifications Switch Input:
  • Normally open
Voltage input:
  • Input Voltage: 5-24VDC or VAC
  • Input Current: approx. 0.005 Amp.
  • Minimum pulse width: 0.25 seconds
Output:
  • Current Pulse: 4.75 Amp. (2 seconds max.)
  • Continuous: 3.6 VDC / 0.8 Amp.
Time Delay:
  • User selectable: 0-4 minutes delay after input is removed
Fire Alarm Terminal:
  • Red LED (D3) blinks when Fire Alarm interrupts circuit
  • Provides immediate termination of output
    Switch Input:

    Accepts normally closed contacts or 5-24 Volts from a listed fire detecting device.

    Voltage Input:
  • Input Current: 0.005 Amp.
  • Minimum pulse width: 0.25 seconds
Auxiliary Contacts:
  • Relay isolated contacts provided for remote signaling (e.g. door operator)
  • Normally open or normally closed contacts are rated at 0.5 Amp., 24VDC or VAC
  • Contact operation follows successful operation of the ELR device

To Order: specify CM150-08
