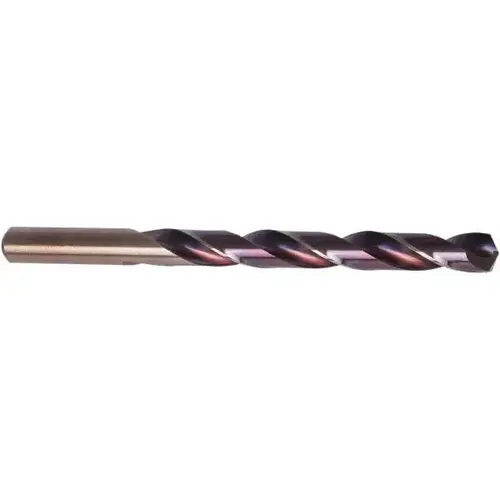

Precision Twist Drill 5996267 Jobber Drill: 29/64" Dia, 135 deg Point, High Speed Steel Bronze

Item #: 5996267 by Precision Twist Drill

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$23.73

/each
SAVE UP TO 2.37
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 68 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

HX10-HX15-HX18

Point Type

Standard

Drill Bit Material

High Speed Steel

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

Bronze

Coolant Through

No

Double Margin

No

Drill Bit Size (Decimal Inch)

0.4531

Drill Bit Size (Inch)

29/64

Drill Bit Size Range (Decimal Inch)

0.4000 - 0.5000

Drill Point Angle

135 degrees

Flute By Diameter Ratio

9xD

Flute Length (Decimal Inch)

4.1875

Flute Length (Inch)

4-3/16

Material Grade

M2

Maximum Drilling Depth (Decimal Inch)

4.1875

Maximum Drilling Depth (Inch)

4-3/16

Number of Flats

0

Overall Length (Decimal Inch)

5.625

Overall Length (Inch)

5-5/8

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.4531

Shank Diameter (Inch)

29/64

Shank Length (Decimal Inch)

1.4375

Shank Length (Inch)

1-7/16

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Specification Designation

ANSI

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Drill: 29/64" Dia, 135 deg Point, High Speed Steel Bronze Coated, 5-5/8" OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series HX10-HX15-HX18
