Prime-Line N 7530 Bi-Fold Door Repair Kit, Fits 7/16 in. Dia Hole, 7/8 in. Outside Diameter Wheel, Spring-Loaded Guides
Item #: N 7530 by Prime-Line Products
UPC #: 049793275301
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For further dimensional information, please see the line drawing
- Includes one Prime-Line part N 6545 bi-fold top mount pivot which has a 7/16 in. diameter spring-loaded steel base and 3/8 in. diameter plastic cap
- Installation fasteners included
- Includes one Prime-Line part N-6543 jamb and floor mount pivot bracket, that is a steel base with an adjustable self-lubricating plastic bushing
- One N-6538 pair of non-handed bi-fold door surface aligners to keep the doors aligned and tightly closed. Constructed of steel
- One spring-loaded Prime-Line part N-6544 bi-fold door top roller guide with a 7/8in. plastic wheel and a 7/16 in. diam. spring-loaded steel base
- A Phillips head screwdriver is required for installation
- One Prime-Line part N-6696 bottom pivot constructed of a 7/16 in. diameter plastic base with a height-adjusting grooved cone-shaped steel pivot
Warranty
Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Pack Size
1
UNSPSC
31162800
Height
8.35
Length
1.35
Width
3.75
Hazardous Material
No
Country Origin Code
CN

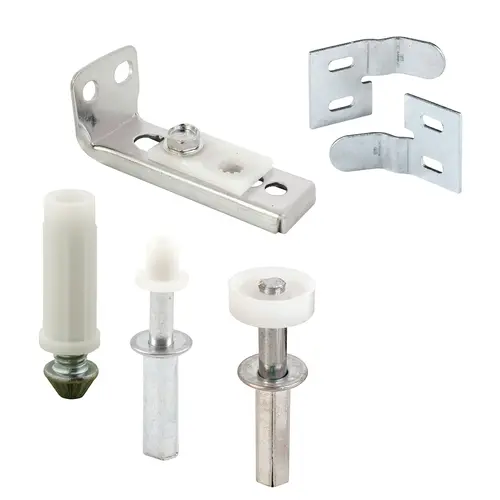

This bi-fold door repair kit includes replacement parts to repair one 2-panel set of hinged bi-folding doors. The bases of the pivots and guide fit 7/16 in. holes and the top guide features a 7/8 in. outside diameter plastic wheel. A bottom pivot bracket and a pair of door aligners are also included, together with a rubber track bumper. Installation fasteners are included in each package for the bottom bracket and door aligners. Bi-fold door hinges are not included with this kit. These components are used by many bi-folding closet door manufacturers. Tip: In a typical bi-folding closet opening, a pair of bi-folding doors is hung on the left side of the opening and a second pair of bi-folding doors is hung on the right side of the opening (a total of 4 narrow doors hung in left and right pairs). The contents of this kit provides for the repair of only one of those pairs or for 2 of the 4 doors that are hung in a single opening.
- Includes one Prime-Line part N 6545 bi-fold top mount pivot which has a 7/16 in. diameter spring-loaded steel base and 3/8 in. diameter plastic cap
- One spring-loaded Prime-Line part N-6544 bi-fold door top roller guide with a 7/8in. plastic wheel and a 7/16 in. diam. spring-loaded steel base
- One N-6538 pair of non-handed bi-fold door surface aligners to keep the doors aligned and tightly closed. Constructed of steel
- One Prime-Line part N-6696 bottom pivot constructed of a 7/16 in. diameter plastic base with a height-adjusting grooved cone-shaped steel pivot
- Includes one Prime-Line part N-6543 jamb and floor mount pivot bracket, that is a steel base with an adjustable self-lubricating plastic bushing
- Installation fasteners included
- A Phillips head screwdriver is required for installation
- For further dimensional information, please see the line drawing
