Yale Commercial AU5402LN 626 Privacy Augusta Lever Grade 1 Cylindrical Lock Satin Chrome Finish
Item #: AU5402LN 626 by Yale
Brand: Yale Commercial
UPC #: 049306019897
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- ANSI / BHMA A156.2 Grade 1
- UL Fire Rated Up to 3 Hours
- Adjustable from 1-3/4" to 2-1/4" Door Thickness
- 2-1/4" x 1-1/8" Beveled Front Standard
- Non Handed
Finish
Satin Chrome
Function
Privacy
Series
5400LN Series
Design
Augusta
Strike
ANSI Strike
Backset
2-3/4" Backset
Thickness
1-3/4" - 2"
Strike Number
497
Package Volume
0
Latch Number
693
Latch Type
Spring Latch (Unguarded)
ANSI Function
F76 - Privacy
Hand
Not Handed
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Screws
Combination
Bolt Protection
1/2"
Color Code
626/US26D
Strike Type
ASA
Rose/Escutcheon Design
3-1/2 In. Diameter
Base Material
Brass or Bronze
Strike Height
4-7/8"
Lever/Knob Design
AU - Augusta
Strike Size
4-7/8" x 1-1/4"
Manufacturer Parent
Assa Abloy
Knob/Lever Size
5 Inch
Finish Description
Satin Chrome
Latch Throw
1/2 Inch

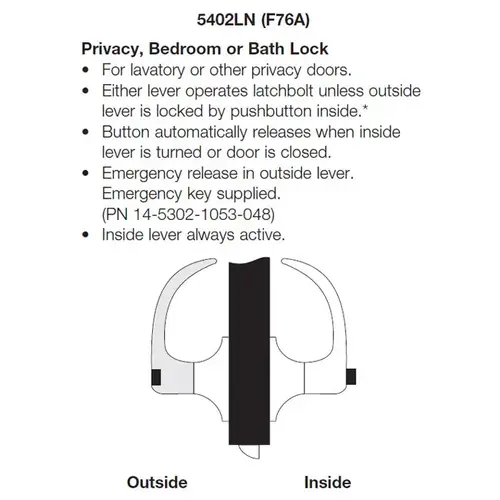

Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Sub-Series
CL_Cylindrical_Locks_yale_commercial_106
Lever Style Family
Straight Return Lever
ADA Compliant
YES
Latch Bolt Material
Stainless Steel
Lever Length-Inches
5 Inch
Handle Type
Lever
Application
Industrial and Commercial
Trim Material
Cast Zinc (Lever); Brass (Rose)
Function Family
Privacy/Bedroom/Bathroom
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Rose Diameter
3-1/2 Inch
Lever Style
AU-Augusta
Latch bolt size
2-3/4 Inch
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Product Projection
3-3/64 Inch
Features
Rugged Reliability and Performance
Warranty
7 year
Strike Lip
1-1/4 Inch
Finish Family
Satin Chrome
Pack Size
1
Dimension
5-7/16" Lever Length; 3-3/64" Projection; 3-1/2" Diameter
Material
Cast Zinc
Door Thickness
1-3/4" to 2-1/4""
Manufacturer Warranty
Limited 7 Year Warranty
UL Listing Type
UL-cUL Fire-Rated Up to 3 Hours
Door Range
1-3/4" to 2-1/4""
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Cross Bore Size
2-1/8" Bore with 5/8" Holes for Thru Bolts
Finish code
626
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Augusta Lever
No of inners
1
Style
Augusta
Package Quantity
1
UL Listed
No
Keying
Non-Keyed
Commercial/Residential
Commercial
Door Handing
Non-Handed
Backset Size
2-3/4 in.
Security Grade
ANSI Grade 1
UNSPSC
46171523
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Lockset Function
Privacy
Collection
5400 Series
Lever Design
Augusta Lever
Keyed
No
Lock Type
Cylindrical
Product Overview
Privacy Augusta Lever Grade 1 Cylindrical Lock with 693 Latch and 497-114 US26D (626) Satin Chrome Finish
