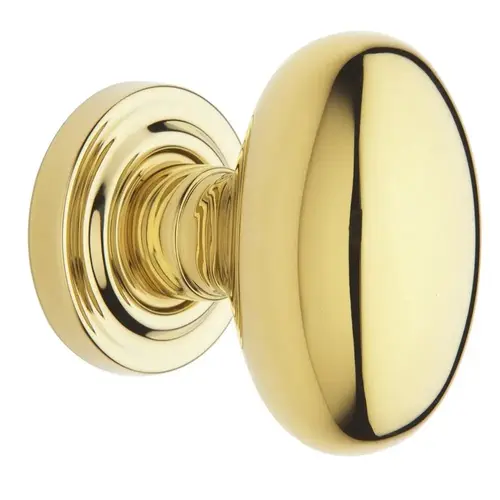

Baldwin 5025003PRIV Privacy Preconfigured 5025 with 5148 Rose Lifetime Brass Finish
Item #: 5025003PRIV by Baldwin
UPC #: 723079104812
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 5025 Estate Knob Privacy Set
- Solid Forged Brass
- Preconfigured With 5148 Rose
- Upon Request, Lock Can Be Certified By Underwriters Laboratories (Ul) For Use On Fire Doors Up To Three-Hour Rating
- Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty
Material
Brass
Product Class
Residential
Function
PRIV-Privacy
Latch Faceplate
Square Corner
Style
Transitional
Theme
Transitional
UL Listed
Yes
Shape
Egg
Configuration
Knobset
Backset
2-3/8 Inch
Handing
Left, Reversible, Right
Door Thickness
1-3/8" to 1-3/4"
28 Degree Latch
Yes
Concealed Screws
Yes
Cross Bore
2-1/8"
Door Knob Shape
Egg
Edge Bore
1"
Locking Mechanism
Trim Lock
Panic Proof
Yes
Rosette Shape
Round
Solid Construction
Solid Brass
Trim Width
2.625
Trim Height
2.625
Handle Width
2.5
Collection
Estate, Estate Pre-Configured
Series
5000 Series
Handle Height
1.75
Handle Projection
2.562
Finish
Lifetime PVD Polished Brass
Finish Description
Bright Polished Brass
Grade
ANSI/BHMA Grade 2
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
5048-Round Rose
Knob style
5025-Egg
Projection
2.5620
Product Height
2-5/8 Inch
Included Components
Knobs; Rosettes; 2-3/8" Backset Latch; 2-1/8" Pre Bore Adaptor; Full Lip Strike
Product Material
Solid Forged Brass
Warranty
Lifetime Limited Mechanical/Finish
Color Code
003
ANSI Function
F76
Latch Type
28-Degree Solid Brass
Strike Type
Square
Finish Family
Polished Brass
Standards
ANSI/BHMA; UL Listed
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Privacy/Bedroom/Bathroom
Product Projection
2-5/8 Inch
Features
Rose Designed to Conceal a 2.125" Bore; Concealed Mounting System
Door Cross Bore
2.125 Inch
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
5.9 x 5.3 x 4.5
Sub-Series
RL_Knob_Locksets_Baldwin_16
Dimension
1-1/2" x 2-1/2" Knob, 2-1/4" Projection
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty
Rose/Escutcheon Design
5148 Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
003
Design
5025 Knob
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
5025 Knob
No of inners
1
Product Overview
Knob Lock With 5048 Rose, 2-3/8" Backset, 003 Lifetime Polished Brass, Privacy
