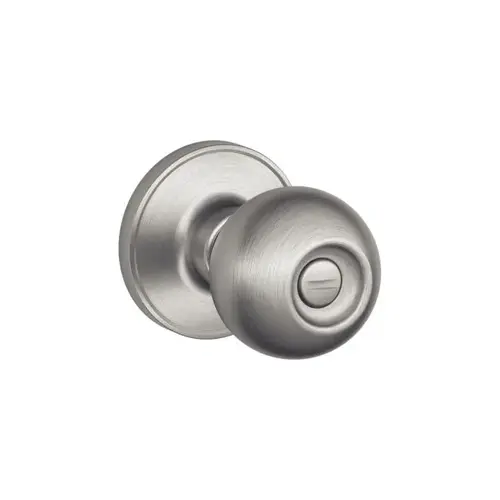

Schlage J Dexter Series J40 CNA 630 Privacy Lock Corona Knob with 16254 Latch and 10101 Strike Satin Stainless Steel Finish
Item #: J40 CNA 630 by Schlage Residential
UPC #: 043156742998
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bed/Bath (Privacy) Function - Turn Button Locking, Turning Inside Turn Button Releases Inside Knob/Lever
- Applications: Residential single and multi family doors
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Backset: Universal - fits either 2-3/8" or 2-3/4" backset
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Certifications: Commercial Standard Certification:ANSI/BHMA A156.2-2010 Grade 3 Residential Standard Certification:ANSI/BHMA A156.39-2015 Grade CCC in Security, Durability and Finish
- Door thickness range: 1-3/8" to 1-3/4" standard
- UL Listed: Box pack available
Finish
Satin Stainless Steel
Function
Privacy
Series
J Series
Design
Corona
Handing
Reversible
Strike
Radius Full Lip Strike
Backset
Adjustable 2-3/8" or 2-3/4" Backset
Color Code
630/US32D
Grade
ANSI/BHMA Grade 3
Finish Description
Satin Stainless Steel
Knob style
CNA-Corona
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.8800
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.0000
Bore Size
2.1250
Product Height
2-5/8"
Included Components
Privacy knobs, roses, latch, strike, mounting hardware
Door Cross Bore
1.0000
Product Material
Zinc
Box Length
6.7700
Box Width
3.2300
Box Height
2.7600
Dimension
2" Knob Diameter and 2-3/4" Projection with 2-5/8" Diameter Rose
Material
Stainless Steel
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
630
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Corona Knob
No of inners
1
Product Overview
Privacy Lock Corona Knob with 16254 Latch and 10101 Strike Satin Stainless Steel Finish
