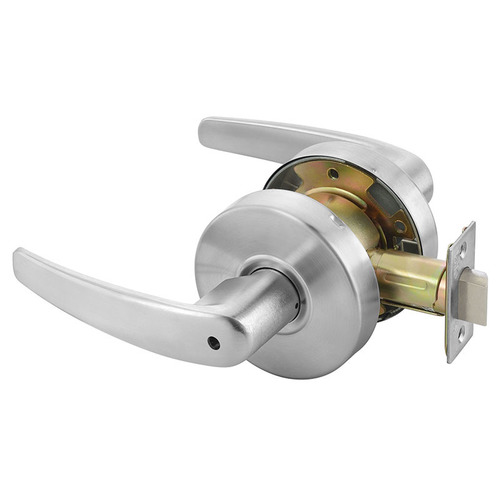

Yale MO4602LN 626 Privacy Monroe Lever Grade 2 Cylindrical Lock Satin Chrome Finish
Item #: MO4602LN 626 by Yale
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ANSI / BHMA A156.2 Grade 2
- ANSI/BHMA Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
- Backset The 4600(LN) series cylindrical locksets are available with a 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset.
- UL Fire Rated Up to 3 Hours
- Adjustable from 1-3/8" to 1-3/4" Door Thickness
- Door thickness Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
- Universal Front for Both Flat and Beveled Door Edges
- Installation Fits ANSI/BHMA A156.115, which covers Hardware Preparation in Steel Doors and Frames and ANSI/BHMA A156.115-W for Wood Doors with Wood or Steel Frames.
- Latchbolts 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. See page 6 for optional latchbolts.
- Non Handed
- Strikes ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard for lever. T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard for knob. See page 7 for optional strikes.
- Warranty The 4600(LN) series cylindrical locks carry a three-year mechanical warranty
- Through-bolts 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
- Fire listings 4600(LN) series locksets are UL - cUL listed for use on fire doors having a rating up to and including 3 hours.
Finish
Satin Chrome
Function
Privacy
Series
4600LN Series
Design
Monroe
Strike
1-1/4" Curved Lip
Backset
2-3/4" Backset
Color Code
626/US26D
Fire Rated
3 Hours {A}
Grade
ANSI/BHMA Grade 2
Application
Commercial Applications
Warranty
3 year mechanical
Handle Type
Lever
Rose Diameter
3-3/8 Inch
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F76
Latch Type
Deadlatch
Strike Type
Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
MO-Monroe
Strike Size
4-7/8" x 1-1/4"
Rose/Escutcheon Trim
Round Rose
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Function Family
Privacy/Bedroom/Bathroom
Latch bolt size
2-3/4 Inch
Strike Lip
1-1/4 Inch
Product Projection
2-1/2 Inch
Trim Material
Cast Zinc (Lever); Brass (Rose)
Features
Versatile; Economical; Secure; Strong and Reliable
Product Type
Cylindrical Lock
Manufacturer Parent
Assa Abloy
Lever Length-Inches
5 Inch
Knob/Lever Size
5 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Lever
Sub-Series
Yale-MO-4602LN
Dimension
4-1/2" Lever Length; 2-1/2" Projection; 3-3/8" Rose Diameter
Material
Cast Zinc
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Warranty
Limited 3 Year Warranty
Rose/Escutcheon Design
Round Rose
UL Listing Type
UL-cUL Fire Rated up to 3 Hours
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 2-1/4"
Cross Bore Size
2-1/8" Bore with Optional Thru Bolts
Finish code
626
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Monroe Lever
No of inners
1
Product Overview
Privacy, Cylindrical Lock, MO Lever Design, Satin Chrome
Yale 4600LN cylindrical locks are the idea choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL Fire Listed for all functions insuring reliability and peace of mind.
Ideal for commercial applications.
Ideal choice for a wide variety of grade 2 commercial applications where consistent quality, ease of use and installation are required at an economical price.
