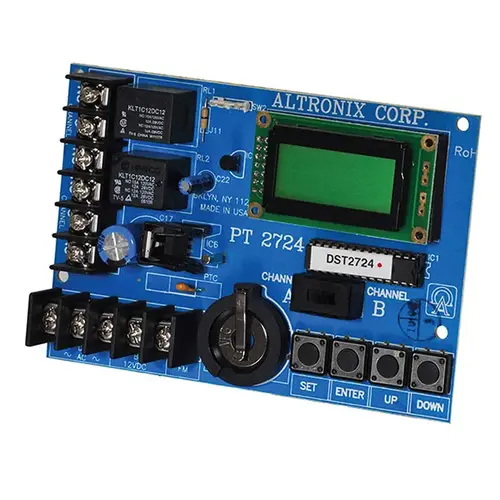

Altronix PT2724 2 Channel Annual Event Timer, 365 Day 24 Hour, 12/24VAC/DC Input, Form C Relay Contacts rated 120VAC/28VDC at 10A
Item #: PT2724 by Altronix
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Output Volts
12/24 VDC/VAC
Voltage
12 Volt
Operating Temperature
-4 to 120°F
Function
Timer
Product Height
1.1 Inch
Product Length
5.25 Inches
Product Width
3.6 Inches
ADA Compliant
No
Battery Backup
YES
Product Dimensions
5-1/4" x 3" x 1"
Function Family
Part/Component
Battery Used
Lead Acid; Gel
Battery Included
No
Features
EE Prom Memory; Accurate Crystal Control Clock; Momentary/Latching Event; 50 Individual Program Event; Block Program Capacity; 10 Program Holiday; First Man In Option; Standard/Daylight Time Setting; Auto Compensation Leap Year; Built-in Charger
Input Voltage
12 to 24VAC/VDC
Product Type
Access Control Part/Accessory
Series
Parts/Accessories
Manufacturer Parent
Altronix
Number of Relays
1
Power Supply Type
Switching
Visual Indicators
Alphanumeric LCD Display Simplifies Programming
Output Type
Multi Voltage
Enclosure Style
Board Only
Sub-Series
PT2724
Product Overview
2 Channel Annual Event Timer, 365 Day 24 Hour, 12/24VAC/DC Input, Form C Relay Contacts rated 120VAC/28VDC at 10A
PT2724 is extremely versatile two channel 365 Day 24 Hour Timer/Controller designed to support a wide range of applications. Such applications include: Home and Building Automation, Security, Access Control, Lighting Control, etc. The PT2724 is equipped with two independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. The EE-Prom memory allows for programming of unit prior to/or during field installation. Events may be set for single or multiple operations on a daily and/or weekly schedule. The block programming feature enables repeating an event on any combination of consecutive days. PT2724 will compensate for daylight savings time if desired. It automatically adjusts for leap year and individually selected holiday exceptions and can be programmed to override regularly scheduled events.
