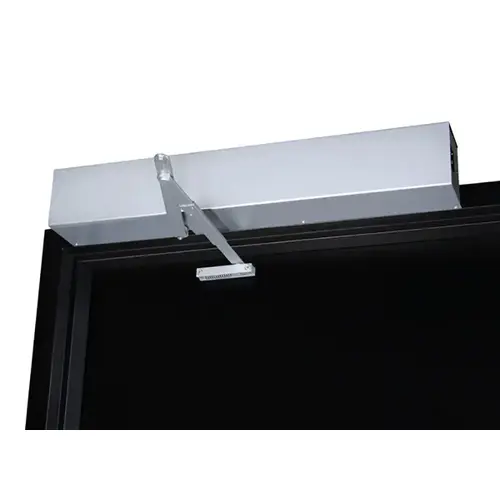

Norton 6060 689 6000 Series Low Energy Series Operator, Aluminum Painted

Item #: 6060 689 by Norton

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Door Controls (interior)(exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum housing.
  • Door closing force shall be adjustable to ensure adequate closing control.
  • Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle.
  • Door Operator shall provide conventional door closer opening and closing forces unless the power operator motor is activated.
  • Door Operator opening force and speed shall be adjustable in the inverter/interface module's LCD screen to ensure adequate opening control per accessibility codes.
  • Door Operator shall have an adjustable hydraulic backcheck valve to cushion the door speed if opened violently.
  • Door Operator shall utilize the inverter/interface module's LCD screen and joystick to establish door closes and open positions.
  • [(Door Operator shall be AUTOMATICALLY ACTIVATED by either a slight push or pull in the direction of opening swing – Push and Go.)
  • (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.)
  • (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)]
  • Unit shall include "E-saver" feature to automatically recognize abled body traffic and immediately trigger door to close after sensing no forces on door.
  • Unit shall have delay for motor activation, electric lock interfacing, and hold open time.
  • Units shall have SPDT relay for interfacing latch retraction exit devices or similar products and have 24VDC @ 1.3A output for connection of electric strike, lock, radio frequency receiver, etc.
  • Units shall have Vestibule sequencing input for operation of two or more units.
  • Unit shall have smoke ventilation inputs to power open doors when activated by fire or smoke alarm.
  • Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched “ON” to monitor for function inputs, switched to “H/O” for indefinite hold open function or switched “OFF” which will disable function inputs allowing unit to be used as a manual door closer.
  • Unit shall be ETL tested to UL standards for automatic closing door.
  • The Unit shall be adjustable to provide compliance with the requirements of the Americans With Disabilities Act (ADA).
  • Unit shall be certified by BHMA to meet ANSI A117.1 and A156.19 requirements.
  • Unit shall meet UL, cUL, UL10C and UL10B standards.

Finish

Aluminum Painted

Function

Double Lever Arm

Series

6000 Series

Application

Double Lever Arm, Push Side

Type

Surface

Hand

Non-Handed

Color

Aluminum Painted

Color Code

689/US28

Mounting Style

Top Jamb

Arm Type

Double Lever Arm Heavy Duty

Fire Rated

3 Hours {A}

Origin

USA

BAA Qualified

Yes

Package Height

7"

Package Length

35.25"

Package Volume

2220.75

Package Width

9"

Cold Weather Fluid

Yes

Degree Swing

85¼ to 110¼

Mounting Location

Push Side

Package Qty

1

Reveal Size

2-1/4" to 4-3/4"

Special Marks

Fire rated 3 Hours {A}

Base Material

VARIES

Mount

Push Side

Finish Description

Aluminum Painted

Product Type

Door Operator

Voltage

120 volt

Product Overview
Push Side, Heavy Duty Double Lever Arm, Sizes 1-6, 689 Aluminum Finish
6000 SeriesLow Energy Power Operator

The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the unit's high level of versatility allows for seamless integration with a multitude of facilities and systems.

Functions: Adjustable Hold Open:
  • Amount of time a door will stay in the full open position after an activation
Blow open for smoke ventilation:
  • Door opens when signal is received from alarm system allowing air or smoke to flow through opening.
  • Door will stay open until signal from alarm system is stopped
Infinite Hold Open:
  • Door will hold open at set position until power is turned off
Obstruction Detection:
  • Open: door closes if it hits an obstruction while opening
  • Close: door reopens (once) if it hits an obstruction while closing. If it hits the obstruction again, the door will rest against the obstruction until it is removed
Open Delay:
  • Delays operator opening for locking hardware
Overload Safety Shut-Off:
  • After 3 minutes of receiving a door activation signal, inverter times out and door closes
  • Prevents motor/inverter damage
Presence Detector Input:
  • Input for external sensor to detect presence at door open or close position only
Push & Go:
  • As the door is manually opened, the operator "senses" movement and opens door to the full-open position
Selector mode switch:
  • Off - Disables signal inputs unless Blow Open is activated
  • On - Activates signal inputs
  • Hold Open - Activates the unit (unless blow closed is activated on 6300) to the hold open position
Two Selectable Output relay:
  • Multi-function relay outputs
Vestibule Delay:
  • When the push button is pressed, first door in vestibule will open. Second door will open once vestibule door delay has expired. Delay is adjustable.
Features:
  • Push or pull side mounting
  • Non-handed
  • Modular design for one person install
  • Full cover option on double/pair of doors
  • 1.3A onboard power supply
  • Activated by push button, hands-free, and RF devices
  • Infinite hold open
  • Maximum door size 4'0" x 8'0", 250 lbs
  • Operates as a mechanical surface closer when power is off
  • On board electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
  • 2 year limited warranty
Electrical Data:
  • Power input 120 VAC, 60 Hz (+10%, -15%)
  • Current draw 0.9A (single), 1.8A (double)
  • Auxiliary output 24 VDC @ 1.3A
  • SPDT relay output for controlling electric strikes or electric locks not to exceed 1 amp @ 30 VDC
Certifications:
  • ANSI/BHMA A156.19 certified
  • ETL tested to UL / cUL standards for automatic doors used on fire and smoke barrier doors and CSA C22.2 No. 247 for operators and systems of doors
  • UL10C listed for positive pressure fire test
  • Comply with requirements for the Americans with Disabilities Act (A.D.A)
  • California State Fire Marshal Listing 3266-0944:0110
  • Manufactured in an ISO 9001 and ISO 14001 facility
