What are the overall dimensions of the Hafele 315.99.503 Mounting Plate?

Cabinet & Furniture Hardware
Cabinet Hinges and Rollers
Hinges
profile-dk-logo
DK Hardware 2026-09-30 - 18:03:47
Technical Team

The Hafele 315.99.503 Mounting Plate measures approximately 2.5984 inches (66 mm) in length, 2.4016 inches (61 mm) in width, and 0.3937 inches (10 mm) in height. These compact dimensions ensure it fits discreetly within cabinet constructions.

Product Details

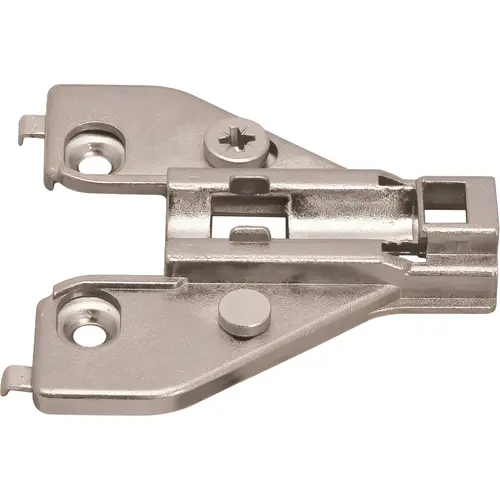

Mounting Plate, Face Frame, for Clip-On Hinges 3 mm Height: 3, mounting: 1/2" overlay Nickel plated
315.99.503Hafele 315.99.503 Mounting Plate, Face Frame, for Clip-On Hinges 3 mm Height: 3, mounting: 1/2" overlay Nickel plated
(1)
$0.96/Each
