How is the Hafele 420.58.511 Mini Slide installed, and what groove size is required?

Windows and Door Hardware
Screen, Patio, Storm Door and Window Hardware
Wardrobe Door and Drawer Hardware
profile-dk-logo
DK Hardware 2026-09-30 - 18:08:59
Technical Team

The Hafele 420.58.511 Mini Slide can be installed via groove mounting or side mounting. For groove mounting, a 17 mm (11/16") groove is required, with the drawer member pressing into the drawer box groove at a 7 mm (9/32") depth.

Product Details

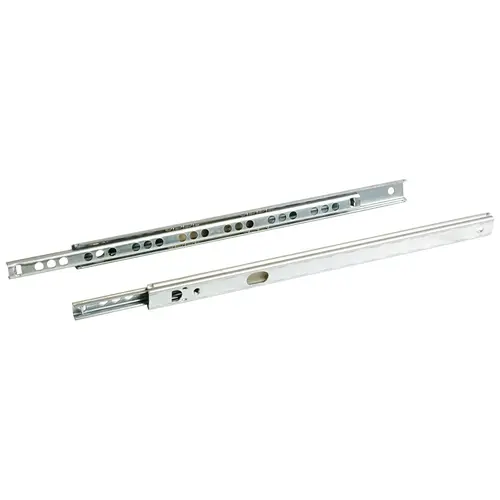

Mini Slide, Partial Extension 14 9/16 - 16 1/8" 77.00 mm DM/CM: 243/247 (9 9/16"/9 11/16") Drawer length: 370-410 mm (14 9/16" - 161/8") Zinc-plated
420.58.511Hafele 420.58.511 Mini Slide, Partial Extension 14 9/16 - 16 1/8" 77.00 mm DM/CM: 243/247 (9 9/16"/9 11/16") Drawer length: 370-410 mm (14 9/16" - 161/8") Zinc-plated
$5.16/Each
