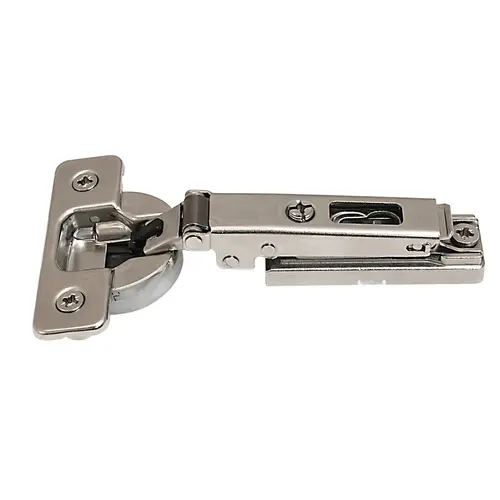

Concealed Hinge, Salice 200 Series, 120 degree Opening Angle, Self Close, 1/2" Overlay dowel mounting, model C2R9D99

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Brixwell QH75-001 Concealed Hinge, Salice 200 Series, 120 degree Opening Angle, Self Close, 1/2" Overlay dowel mounting, model C2R9D99

Item #: QH75-001 by Brixwell

See reviewsSee reviews
See reviews summary
In Stock

$3.18

/each
SAVE UP TO 0.32
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 300 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Material: Steel construction for durability and strength
  • Opening Angle: 120 Degree opening angle for ample access to cabinet interio
  • Door Mounting: Full Overlay Door Mounting for seamless and modern appearance
  • Finish: Nickel Plated Finish for sleek appearance and corrosion resistance
  • Crank Type: Cranked design for specific door alignments
  • Cup Drilling Depth: Standard 11 mm Cup Drilling depth for secure fit
  • Adjustment Facility: Adjustable side, height, and depth for perfect alignment
  • Long-Lasting Performance: Designed for lasting performance with frequent use.
  • Best Use: Suitable for wooden doors with optimal functionality

Finish

Nickel Plated

Material

Steel

Opening Angle

120 degree

For Door Thickness

16 to 26 mm

Door mounting

full overlay

Adjustment facility

Side adjustment,1.5 – 4.5 mm Height adjustment 2 mm Depth adjustment,0.5 – 2.8 mm

Cup drilling diameter

35 mm

Cup drilling depth

11 mm

Crank type

Cranked

Side panel thickness min.

5/8"

Drilling pattern

45/9.5

Door processing for assembly

cup drilling

For door thickness min.

5/8"

Clearance to Cup

3 to 6 mm

Product Overview
Concealed Hinge, designed for maximum functionality and durability. Made from high-quality steel, this hinge is built to last. With a wide opening angle of 120 Degree, this hinge is perfect for doors with a thickness of 16 to 26 mm. The full overlay Door Mounting ensures a seamless and sleek look. This hinge also features convenient adjustment facilities. Finished in Nickel plating, this hinge not only looks great but also resists corrosion and wear.
