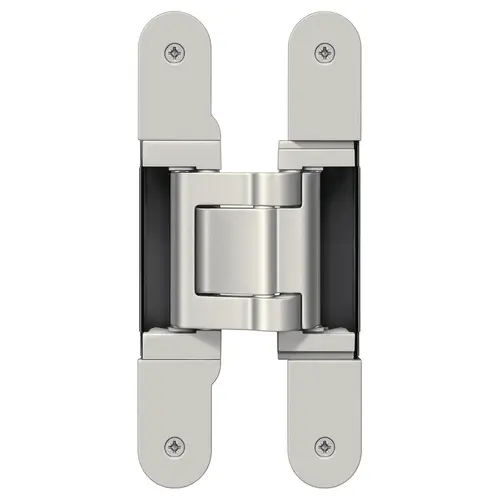

Concealed Hinge, TECTUS TE 541 3D FVZ 144 concealed, 3D adjustable, size 185 mm, satin nickel powder coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Brixwell QHVY-002 Concealed Hinge, TECTUS TE 541 3D FVZ 144 concealed, 3D adjustable, size 185 mm, satin nickel powder coated

Item #: QHVY-002 by Brixwell

See reviewsSee reviews
See reviews summary
In Stock

$582.81

/each
SAVE UP TO 58.28
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 69 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • High Quality Material: The TECTUS TE 541 3D concealed hinge is made from durable aluminum and steel.
  • Supports Heavy Doors: Designed to support doors weighing up to 220 pounds.
  • Suitable for Thick Doors: Ideal for doors with a thickness of 40mm.
  • 180 Degree Opening Angle: Provides smooth, unrestricted door movement for hidden door hinges.
  • Flexible Installation: Can be installed on both DIN left and DIN right hand doors.
  • Rounded Flange Design: Ensures a secure and tight fit with its rounded flange.
  • Versatile Use: Suitable for both residential and commercial door installations requiring hidden hinges.
  • Invisible Door Hinges: Delivers a sleek, modern look for invisible door hinges installations.
  • TECTUS Hinge Technology: Incorporates advanced TECTUS concealed hinges for long lasting performance.

Finish

Satin Nickel Powder Coated

Material

Cover: Steel, Link: Aluminum

Opening Angle

180 Degree

Flange Shape

Rounded

For frame type

Steel frame, Wooden frame , Aluminum frame

Thrust ring diameter

30mm

Flange height

185mm

Flange width

28mm

Door weight max.

220 lbs

Router bit diameter

15/16"

For door thickness min.

1 9/16"

Mounting

For DIN left and DIN right hand use

Product Overview
The TECTUS TE 541 3D Concealed Hinge is a high quality, long lasting option for seamless door fitting that combines both style and functionality. This concealed hinge, made of a strong combination of aluminum and steel, can support doors weighing up to 220 pounds and measuring 40mm thick. It has a full 180 degree opening angle, which guarantees smooth and free door movement, making it excellent for hidden door hinges and concealed cabinet hinges. The flexible design enables installation on both DIN left and DIN right hand doors, offering versatility for a wide range of installations. Its rounded flange form guarantees a tight fit, and it is available in several stylish finishes such as satin nickel, traffic white, polished nickel, and dark bronze to match any design. Either you're installing invisible door hinges or tectus concealed hinges, the TECTUS TE 541 3D offers a stylish, modern solution for both home and business use.
