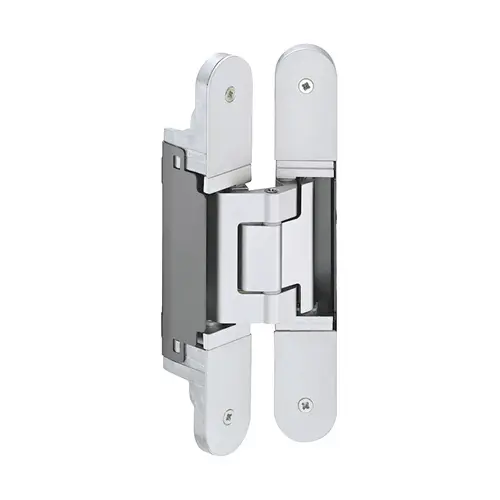

Brixwell QHWQ-001 Concealed Hinge, TECTUS TE 540 3D TE 540 3D 3D adjustable, size 200 mm, Stainless steel effect powder coated

Item #: QHWQ-001 by Brixwell

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • High Quality Materials: The TECTUS TE 540 3D concealed hinge is made of strong aluminum and steel.
  • Supports Heavy Doors: This hinge can support doors weighing up to 264 pounds.
  • Ideal for Thick Doors: Designed to fit doors up to 40mm thick.
  • 180 Degree Opening Angle: Allows smooth, free door movement.
  • Versatile Installation: Installation is flexible, as it can be used with either the left or right hand DIN.
  • Perfect Fit: A rounded flange with dimensions of 32mm x 200mm guarantees a perfect installation.
  • Enhanced Stability: The thrust ring diameter is 30mm, which increases stability.
  • Seamless Design: Gives a smooth design for both hidden door and concealed cabinet hinges.
  • Residential and Commercial Use: Ideal for residential and commercial uses that require concealed door hinges.

Finish

Stainless Steel

Material

Aluminum Die Cast

Opening Angle

180 Degree

Flange Shape

Rounded

For frame type

Steel frame, Wooden or lining frame , Aluminum frame

Thrust ring diameter

30mm

Flange height

200mm

Flange width

32mm

Door weight max.

264 lbs

Router bit diameter

15/16", Guide: 1 3/16"

For door thickness min.

1 9/16"

Mounting

For DIN left and DIN right hand use

Product Overview
The TECTUS TE 540 3D Concealed Hinge is a high quality, long lasting hinge that allows for seamless door installation while also delivering functionality and looks. This concealed hinge, made of aluminum and steel, provides long lasting performance, supporting doors weighing up to 264 pounds and measuring 40mm in thickness. With a full 180 degree opening angle, the TECTUS TE 540 3D hinge allows for smooth and unrestricted door movement, making it suitable for both hidden door hinges and concealed cabinet hinges. Its adaptable design allows for both DIN left and DIN right hand operation, allowing for a wide range of installation. The rounded flange form and flange size of 32mm x 200mm provide a perfect fit, while the 30mm thrust ring diameter increases stability. This tectus hinge matches any design style and is excellent for residential as well as commercial uses requiring hidden hinges and concealed door hinges. For cabinetry or hidden door hinges outswing, the TECTUS TE 540 3D offers outstanding performance and clean, modern looks.
