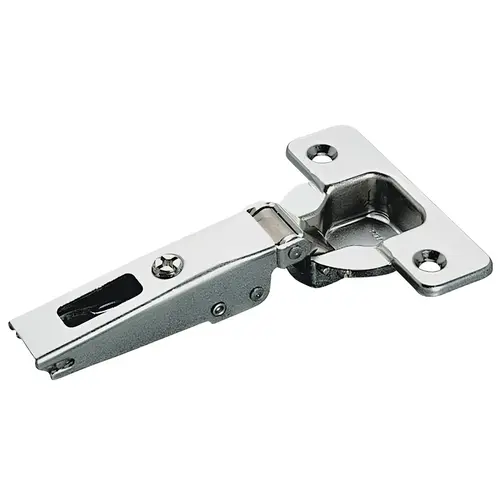

Concealed Hinge, Salice 200 Series, 110 degree Opening Angle, Half Overlay for wooden doors, for standard applications, Silentia Soft Close, Rapido Mounting, 1/2" Overlay, Model C776DD9 Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Brixwell QIEE-002 Concealed Hinge, Salice 200 Series, 110 degree Opening Angle, Half Overlay for wooden doors, for standard applications, Silentia Soft Close, Rapido Mounting, 1/2" Overlay, Model C776DD9 Nickel plated

Item #: QIEE-002 by Brixwell

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Material: High-quality steel construction for durability and strength.
  • Opening Angle: 110 Degree opening angle for easy access to cabinet contents
  • Crank Type: Cranked design for specific overlay or inset door applications
  • Overlay: Half overlay design for partial coverage of cabinet frame
  • Automatic Closing Spring: Automatic closing spring for convenience and safety
  • Cup Drilling: Cup Drilling for secure and concealed attachment to the door
  • Diameter: Standard cup diameter for compatibility with pre-drilled doors
  • Adjustment Facility:3-way adjustment capabilities for precise alignment of cabinet doors
  • Versatile Application:Versatile hinge system suitable for all door applications

Finish

Nickel Plated

Material

Steel

Opening Angle

110 Degree

Functionality

With automatic closing spring With soft closing mechanism

For Door Thickness

16 to 26 mm

For door material

wood

Door mounting

Half overlay mounting/twin mounting

Adjustment facility

Side adjustment,1.5 – 4.5 mm Height adjustment 2 mm Depth adjustment with Duomatic A mounting plates 2.8 mm with Duomatic SM mounting plates from,0.5 to 2.8 mm

Cup drilling diameter

35 mm

Cup drilling depth

13.5 mm

Crank type

Cranked

Door processing for assembly

cup drilling

Product Overview
The high-quality Concealed Hinge made from sturdy steel, this hinge is built to last. The half overlay concealed hinge version offers a sleek and seamless look for your cabinets.With a generous opening angle of 110 Degrees, this hinge provides easy access to your cabinet contents. The Cup Drilling depth of 13.5 mm ensures a secure fit for your cabinet doors. Suitable for door thickness ranging from 16 to 26 mm, this hinge is versatile and adaptable to your needs.Not only does this Concealed Hinge offer exceptional functionality, but it also includes a soft closing mechanism for added convenience.
