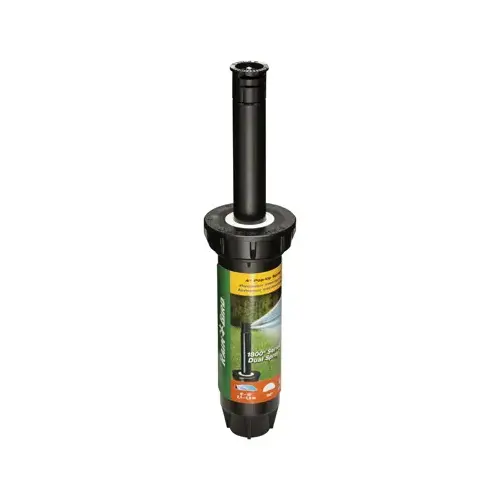

RAIN BIRD 1804HDS-25 Spray Head Sprinkler, 1/2 in Connection, FNPT, 8 to 15 ft, Plastic
Item #: 1804HDS-25 by Rain Bird
UPC #: 077985020392
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 1/2" Inlet Size
- Spray distance from 8 ft. to 15 ft.
- Directional adjustment feature lets you aim the spray pattern by hand
- Heavy-duty stainless steel spring assures flush retraction every time
- Patented pressure-activated co-molded wiper seal prevents wasteful water leakage and assures long life
- Simple, top adjustment screw decreases spray distance
- Tapered pop-up neck helps to remove debris during retraction
- Dual orifices eliminate gaps close to the spray
- Operates efficiently at low water pressure
- Minimizes dry, brown spots
- Spray Distance: 8' - 15'
- U.V. resistant plastic reduces fading
- Great coverage uniformity helps to reduce run time up to 35% to conserve water
- Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
- Heavy-duty stainless steel spring assures flush retraction, every time
- No tools needed to change nozzles
- Exclusive co-molded wiper seal features an encased plastic "cage" to provide unmatched resistance to grit, pressure and the environment
- Pressure-activated, multi-function seal design assures a positive seal without excess "flow-by", which enables more heads to be installed on the same valve
Pop Up Height (in.)
4 Inch
Inlet Size (in.)
0.5
Product Width (in.)
2.25
Thread Type
Pipe Thread
Product Height (in.)
2.25
Mounting
Portable
Material
Plastic
Pack Size
1
Features
Retraction Spring
Product Depth (in.)
6
Warranty
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
General Color Family
Blacks
Irrigation System Component
Sprinkler
Maximum Spray Distance (ft.)
15.0
Manufacturer Warranty
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
Returnable
Yes
Height
2.30
Defective Code
A
Color
Black
Pop Up Height
4"
Nozzle Included
Yes
Width
2.30
Number in Package
1 pk
Sub Brand
1800 Series
Inlet Size
1/2"
Packaging Type
Boxed
Length
6.00
Product Type
Pop-Up Sprinkler
Spray Pattern
Half-Circle
Throw Spray Range
15 ft.
Each Weight
0.220 LB
Velocity
N
Hazardous Material
No
UNSPSC
21102500
ECCN
EAR99
Country Origin Code
US
Connection Size
1/2"
Pressure rating
15 to 70 psi
Full-Circle/Part-Circle
Part-Circle
Nomenclature
A18643/1804HDS SPRINKLER 4IN H
Connection Type
FNPT
The 1800 Series has first-rate quality built in for reliable operation and long life. Their great components and features make them the spray heads of choice for a wide variety of applications.
