4 In. 40 Deg. to 360 Deg. Pop-Up Mini Rotor Sprinkler with Gear Drive Head

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

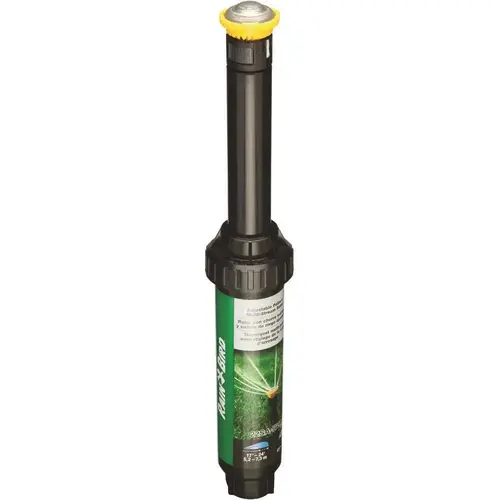

RAIN BIRD 22SA-RVAN 4 In. 40 Deg. to 360 Deg. Pop-Up Mini Rotor Sprinkler with Gear Drive Head

Item #: 22SA-RVAN by RAIN BIRD CORPORATION

UPC #: 077985033439

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Product Diameter (in.)

3

Pop Up Height (in.)

4 Inch

Product Width (in.)

1.75

Thread Type

1/2" Female Pipe Thread

Product Height (in.)

6.25

Mounting

In-Ground Install

Material

ABS Plastic

Pack Size

1

Features

Adjustable

Product Depth (in.)

1.5

Warranty

If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.

General Color Family

Blacks

Irrigation System Component

Sprinkler

Maximum Spray Distance (ft.)

24

Manufacturer Warranty

If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.

UNSPSC

21102500

Spray Pattern

40 Deg. to 360 Deg.

Inlet Type

1/2 In.

Pop-Up Height

4 in.

Spray Radius

17 Ft. to 24 Ft.

Product Overview

The Rain Bird 22SA-RVAN mini rotor combines watering efficiency with the accuracy and simplicity of 45° to 270° pattern adjustment by hand, with no tools required. This versatile sprinkler allows you to apply multi-stream, water-saving coverage in more areas of your lawn - in narrow or wide corners, along curved walkways, even in outside corners. It is an ideal complement to other Rain Bird 22SA mini rotors available in fixed full, half or quarter patterns. To adjust the sprinkler pattern from 45° to 270° , just push down and turn the top cap. To adjust distance from 17 to 24 ft., turn the stem collar. No other multi-stream rotor is so easy to fine tune, allowing you to keep water on the grass or garden, not on buildings, the sidewalk or driveway. In operation, the sprinkler produces remarkably low precipitation rates of 0.6 in. per hour, reducing water use up to 30%. The secret is in the nozzle's rotary multi-stream action. The water delivery is gentle enough for newly seeded areas and hillsides, yet covers more area than standard pop-up sprays. The nozzle's water droplets are also larger than traditional pop-up spray droplets, resisting windblown overspray. If you are planning a new irrigation system, this sprinkler's extended throw up to 24 ft. allows you to use fewer heads per zone to reduce system complexity.

  • Hand-adjustable spray pattern from 45° to 270°
  • Multiple rotating streams distribute water uniformly
  • Extended throw up to 24 ft. covers more area with fewer sprinklers
  • Nozzle and screen are easily removed for flushing
  • Pressure-activated wiper seal protects mechanism from creeping grasses and sandy soil
  • Reduces water use up to 30% over pop-up sprinklers
  • Slow distribution rate of 0.6 in. per hour is ideal for newly seeded areas, slopes and hillsides
  • Multiple rotating streams resist windblown over spray
  • A protected closed-case design that makes it ideal for "creeping" grasses, sandy soil and other harsh surroundings
  • Engineered to operate at lower pressure while still delivering precise even coverage
