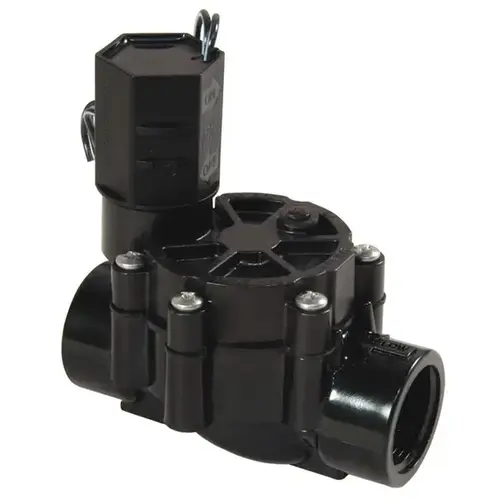

RAIN BIRD CP-100 CPF-100 Series Automatic Sprinkler Valves
Item #: CP-100 by RAIN BIRD CORPORATION-CONSUMER
UPC #: 077985610005
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 1 in female pipe thread inlet and outlet inline irrigation valve
- Buna-N diaphragm offers great performance in harsh water environments
- Buna-N diaphragm offers superior performance in harsh water environments
- Designed for below-ground installation, out of sight and away from playful hands
- Reliable, non-clogging design
- Reverse Flow design reduces stress on diaphragm for dependable operation
- In-line design minimizes pressure loss of dirt and debris during installation and system start-up
- Operates automatically or manually with manual bleed screw
- Works with any standard sprinkler timer
- Energy efficient, low power encapsulated solenoid with captured plunger
Inlet Size (in.)
1
Connection
Female Pipe Thread
Product Width (in.)
3.37
Number of Outlets
1
Thread Type
Pipe Thread
Product Height (in.)
5
Pack Size
1
Product Length (in.)
4.75
Warranty
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
Irrigation System Component
Valve
Manufacturer Warranty
If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
Voltage
24 V
Material
Plastic
Inlet Size
1"
Maximum Pressure
150 psi
Packaging Type
Boxed
Adjustable Flow Control
Yes
Defective Code
A
Each Weight
1.020 LB
Hazardous Material
No
Returnable
Yes
Velocity
B
Product Type
Female In-Line Valve
UNSPSC
21102500
Height
4.70
Length
3.40
Width
4.80
ECCN
EAR99
Country Origin Code
MX
Overall Length
3.37"
Application
For below ground with a separate constant pressure backflow prevention device
Overall Width
4-3/4"
Overall Height
5"
Pressure rating
15 to150 psi
Nomenclature
CP100 AUTO INLINE VALVE 1IN
Diaphragm Material
Buna-N
Valve Size
1"
Product Overview
VALVE INLINE AUTOMATIC 1IN
Rain Bird manufactures only the highest quality in-line valves. Use in-line valves in locations where the use of a Pressure Vacuum Breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. In-line valves are installed below ground in a valve box down stream from the main line from a PVB or double check valve. In-line valves will not prevent back flow on their own and they need the help of a back flow prevention device.
