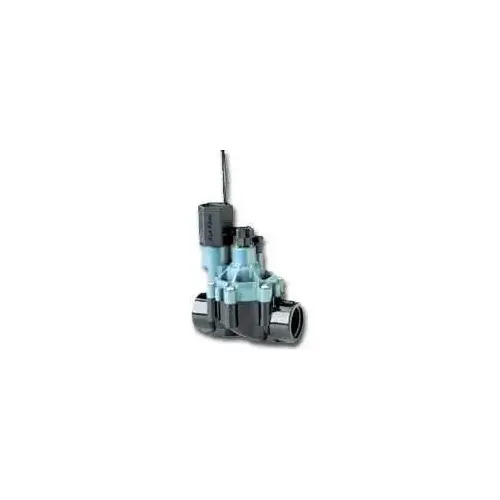

RAIN BIRD CPF075 Sprinkler Valve with Flow Control, 30 A, 24 V, 3/4 in, FNPT x FNPT, 0.2 to 22 gpm, Plastic Body
Item #: CPF075 by RAIN BIRD CORPORATION-CONSUMER
UPC #: 077985611958
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 3/4 in female pipe thread inlet and outlet inline irrigation valve
- Buna-N diaphragm offers great performance in harsh water environments
- Reliable, non-clogging design
- Reverse flow design reduces stress on diaphragm for dependable operation
- In-line design minimizes pressure loss of dirt and debris during installation and system start-up
- Operates automatically or manually with manual bleed screw
- Works with any standard sprinkler timer
- Energy efficient, low power encapsulated solenoid with captured plunger
Returnable
Yes
Defective Code
A
Maximum Pressure
150 psi
Inlet Size
3/4"
Packaging Type
Boxed
Voltage
24 V
Adjustable Flow Control
Yes
Product Type
Female In-Line Valve
Material
Plastic
Each Weight
1.110 LB
Velocity
D
Hazardous Material
No
Application
For below ground installation, out of sight and away from playful hands
Frequency Rating
50/60 Hz
Nominal Size
3/4"
Pressure rating
15 to 150 psi
Nomenclature
CPF075 INLINE SPRINKLER 3/4IN
Softgoods material
Buna-N
Current Rating
30 A
Connection Type
FNPT x FNPT
Product Overview
SPRINKLR INLNE FLW CNTRL 3/4IN
Specifications:
Specifications:
Application: For below ground installation, out of sight and away from playful hands
Rain Bird manufactures only the highest quality in-line valves. Use in-line valves in locations where the use of a Pressure Vacuum Breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. In-line valves are installed below ground in a valve box down stream from the main line from a PVB or double check valve. In-line valves will not prevent back flow on their own and they need the help of a back flow prevention device.
