Features
Refrigeration Control Type
Temperature Control
Color
White
Heat Stages
1
HVAC Product Type
Thermostat
Product Width (in.)
2.7
Cool Stages
1
Part Type
Temperature Gauge
Product Height (in.)
6.52
Pack Size
1
Product Depth (in.)
2.48
Backlight Display
YES
Air Conditioner Part/Accessory Type
Air Conditioner Part/Accessory
Warranty
1
Manufacturer Warranty
1
Certifications
CSA US, UL
UNSPSC
41112209
Package Quantity
1
UL Listed
No
ADA Compliant
No
MADE IN THE USA
No
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Voltage
240 V
Shape
Other
Application
Cooling Control, Heating Control
Power Source
Wired
Includes
8 ft Foot Cable
WiFi Compatible
False
Assembled Product Depth
2.5 in.
Assembled Product Height
6.5 in.
Assembled Product Width
2.75 in.
ENERGY STAR® Qualified
No
Model No.
ETC-111000-000
Product Overview

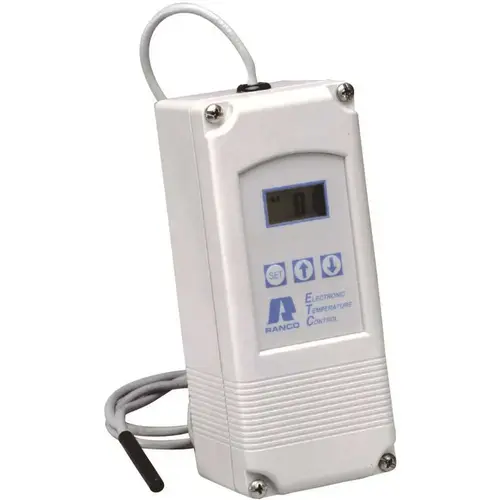

The Ranco ETC Series Electronic Temperature Control, model ETC-111000-000, is a microprocessor-based device designed for on/off temperature regulation in commercial heating, cooling, air conditioning, and refrigeration systems. It offers a wide temperature range of -30°F to 220°F (-34.4°C to 104.4°C) with an adjustable differential from 1°F to 30°F. The unit features selectable heating/cooling modes, Fahrenheit/Celsius scales, and a liquid crystal display (LCD) with a white backlight for monitoring sensor temperature, settings, and relay status. It includes a single-stage, heavy-duty 1 HP output relay with an FLA of 16 Amps at 120V AC and 8 Amps at 208/240V AC. For security, it has EEPROM memory to retain settings during power outages and a keypad lockout feature. The control is housed in a NEMA 1 enclosure, measuring 6.52 inches high x 2.7 inches wide x 2.48 inches deep, and operates on 120/208/240V AC. It comes with an 8-foot thermistor sensor lead, rated IP67 for dust and water resistance, which is eble up to 400 feet. The control is UL listed (file E94419) and CSA certified (file LR68340, class 4813 02).
