Features
Refrigeration Control Type
Single High Pressure Control
Color
White
HVAC Product Type
HVAC Part
Product Width (in.)
3.75
Full Load Amps
24 Amp
Refrigeration Controls Type
Pressure
Part Type
Control
Voltage
120
Product Height (in.)
6.0
Pack Size
1
Product Depth (in.)
2.5
Switch Type
SPST
Air Conditioner Part/Accessory Type
Air Conditioner Part/Accessory
Warranty
1 year warranty
Manufacturer Warranty
1 year warranty
UNSPSC
24131513
Weight
2.00
Model No.
O10-2054
Product Overview

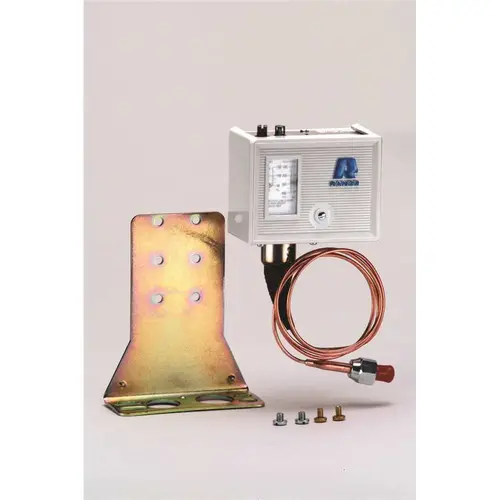

The Ranco O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility. Cap included on all Australia temperature controls. Optional for all other regions.
- NEMA 1 enclosure with non-conductive cover
- Front-located captive cover screw
- Large, easy-to-read scale plate
- Super Cap capillary protection system
- Universal mounting and compact design
- Screw terminals are raised and fully accessible foreasy wiring
- Laser-welded bellows for extended life
- Heavy-duty plated steel frame
- Suitable for R12, R22, and R502 applications
