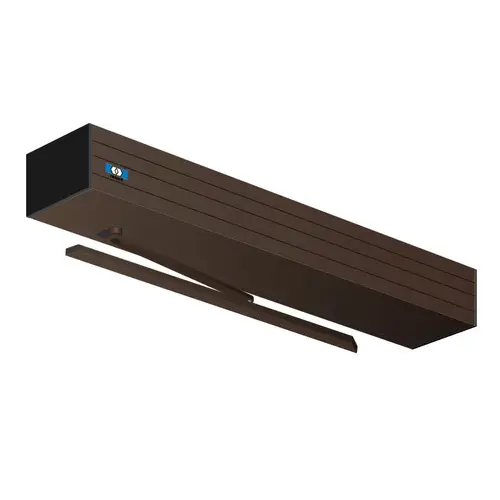

Record-USA SS-DB-S36 SimpleSwing 36 Low Energy Door Operator, Dark Bronze Anodized
Item #: SS-DB-S36 by Record-USA
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Dark Bronze Anodized
Finish Description
Dark Bronze
Healthy Solution
Touchless
Product Type
Door Operator
Finish Family
Dark Bronze
For Door Width
36 Inch
Warranty
1 Year
Current Draw
15A
Features
Simplelynk Communications Display Allows the Installer to Properly Set-Up and Program the Door; Interfaces With Electric Strikes Without Additional Relays or Delays; Opening Angle with Track Arm: 90°; Opening Angle with Standard Arm: 120°
Standards
ANSI/BHMA 156.19; UL325/UL228
Power Output
24V AC/DC @ 0.5A
Mount
Push or Pull Side
Function Family
Power Door Operator
Application
Interior or Exterior
Mounting Type
Push or Pull Side
ADA Compliant
No
Sub-Series
SS-DB-S36
Hand
Non-Handed Field Reversible
Function
Push or Pull Side Operator
Power Input
120 VAC; 60 Hz
Maximum Door Weight
175 lbs.
Closer Arm Type
Track Arm
Handing
Reversible
Manufacturer Parent
Record-USA
healthy_solution
Touchless
functionality conforming to ANSI A156.19 requirements. The self-monitoring microprocessor based
control maintains precise regulation throughout the door open / close cycle. Two
operators can be connected together in configuration providing synchronized operation.
Safety is additionally increased by the use of a redundant force limitation. - Surface applied
- Field reversable for Right hand or left hand doors
- Inswinging or outswinging doors
- Single pairs or double egress doors
- Doors that require up to 120° door swing
- Swing clear doors
- Interior or Exterior doors
- Up to 750 pounds per door leaf*
- 28” doors through 96” door openings
- Push to start applications eliminate the need for additional activation accessories and complex field wiring
- Latch assist function assures closing in areas with heavy stack conditions commonly associated with doors in air conditioned and heated environments
- Includes two push plates
- Interfaces with electric strikes without additional relays or delays
- Simplelynk Display included standard
- ADA applications
- Breakaway adapter to prevent operator or arm damage when abused
