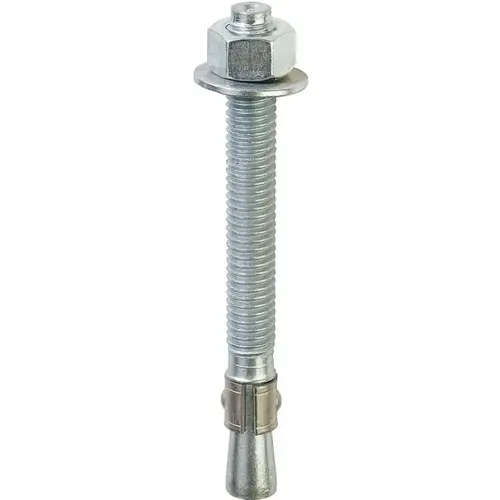

Red Head 12019 Wedge Anchor, 1/2 in Dia, 5-1/2 in OAL, Carbon Steel, Zinc - pack of 10
Item #: 12019 by Red Head
UPC #: 092097120198
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Versatile fully threaded design is standard on sizes up to 3/4 in Dia and 10 in L
- Anchor diameter equals hole diameter
- 360 deg contact with concrete assures full expansion for reliable working loads
- Non bottom-bearing, may be used in hole depth exceeding anchor length
- Can be installed through the work fixture, eliminating hole spotting
- Inspectable torque values, indicating proper installation
Nomenclature
12019/11019 WEDGE ANCHOR 1/2
Minimum Embedment Depth
1-7/8"
Shear Strength
8160 lb Solid Concrete 6440 lb Lightweight Concrete
Drill Size
1/2"
Thread Length
4"
Thread Size
1/2-13
Head Type
HEX Nut
Tensile Strength
10820 lb Solid Concrete 4800 lb Lightweight Concrete
Material
Carbon Steel
Overall Length
5-1/2"
Maximum Work Thickness
2-3/4"
Finish
Zinc
Diameter
1/2"
Specifications:
Includes: (10) Wedge Anchors
Material: Carbon Steel
Trubolt Wedge anchors feature a stainless steel expansion clip, threaded stud body, nut and washer. Anchor bodies are made of plated carbon steel, hot-dipped galvanized carbon steel, type 304 stainless steel or type 316 stainless steel as identified in the drawings or other notations. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification. Use carbide tipped hammer drill bits made in accordance with ANSI B212.15-1994 to install anchors. Anchors are tested to ACI 355.2 and ICC-ES AC193.
