Odp Square Flange Pool & Spa Pump Motor 0.75hp 115/208-230v Black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

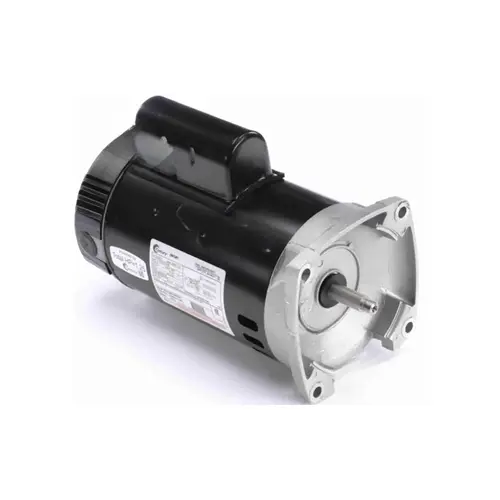

REGAL BELOIT B2661 Odp Square Flange Pool & Spa Pump Motor 0.75hp 115/208-230v Black

Item #: B2661 by Regal Beloit America Inc

UPC #: 663001726036

See reviewsSee reviews
See reviews summary

$407.03

/each
SAVE UP TO 40.70
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Switchless
  • Energy efficient
  • 1/2-20 UNF-2A RH threaded shaft

Diameter

6-1/2 Inch

RPM

3450

Frame

56Y

Type

Full-Rated, CX

Shipping Dimensions

20.50x11.00x9.50

OverallLength

13.10 Inch

Brand

Regal Beloit

Phase

1-Phase

Department

PUMPS

Bearing Type

Ball

AmbientTemperature

50 deg C

FinishColor

Black

FrequencyRating

60 Hz

FullLoadAmps

6.0-5.6/11.2 A

HP

0.75

Item

Pool and Spa Pump Motor

MountingType

C-Face, No Base

StandardsApprovals

UL 1081 Approved, CSA Certified

SubBrand

Century®

VoltageRating

115/208-230 V

EnclosureDesign

Open Dripproof

FlangeMaterial

Aluminum

ThrustHorsepower

1.25

ShaftDesign

Threaded

InsulationClass

B

ShaftLength

7/16 Inch

ShaftMaterial

303 Stainless Steel

ShaftDiameter

5/8 Inch

DutyCycle

Continuous

MotorThermalProtection

Auto

EfficiencyGroup

Standard

MotorDesign

PSC

FlangeType

Square

ServiceFactor

1.67

MotorShaftRotation

CCWPE

Voltage

115V,208V,230V

Shaft Diameter

0.625 inch

Application

Pool

Horsepower

0.75 horse power

Color

Black

Shaft Length

0.4375 inch

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Flange Type

Square

Shaft Material

Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

F

Flange Material

Aluminum

Service Factor

1.67

Motor Rating

Full-Rated

Commercial, Residential, or Professional

Residential

Motor Frame Size

56Y

Master Carton Quantity

1

Thrust HP

1.25

Each Product Weight

29.6 pound

RPMs Min

3450

Shaft Design

Threaded

Green or Energy Efficient Product

True

RPMs Max

3450

Selling Package Depth

9.5

Amps Low Speed

6

Minimum Sell Quantity

1

Efficiency Group

Standard

Frequency Rating (Hz)

60

Motor Shaft Rotation

Counterclockwise Pulley End

Amps High Speed

11.2

Standards Approvals

CSA Certified

Motor Thermal Protection

Automatic Reset

Product Overview

Century(R) E-Plus(R) B2661 Square Flange Full-Rated Pool and Spa Pump Motor; 0.75 HP, 3450 RPM, 115/208-230 V, 56Y, Threaded Shaft
