Odp Square Flange Pool And Spa Motor 1.5hp 115/230v Black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

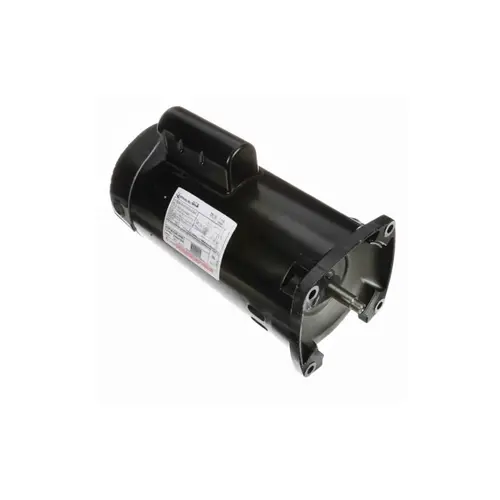

REGAL BELOIT B2858 Odp Square Flange Pool And Spa Motor 1.5hp 115/230v Black

Item #: B2858 by Regal Beloit America Inc

UPC #: 786674012302

See reviewsSee reviews
In Stock

$515.71

/each
SAVE UP TO 51.57

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Switchless
  • High service factor
  • 1/2-20 UNF-2A RH threaded shaft

VoltageRating

115/230 V

DutyCycle

Continuous

MotorDesign

PSC

Frame

56Y

FullLoadAmps

10.5/21.0 A

ServiceFactor

1.50

Brand

Regal Beloit

SubBrand

Century®

StandardsApprovals

UL 1081 Approved, CSA Certified

AmbientTemperature

50 deg C

RPM

3450

ShaftDesign

Threaded

MotorShaftRotation

CCWPE

Phase

1-Phase

Department

PUMPS

ShaftMaterial

303 Stainless Steel

MountingType

C-Face, No Base

InsulationClass

B

EfficiencyGroup

Standard

ThrustHorsepower

2.25

HP

1.5

Type

Full-Rated, CX

ShaftDiameter

5/8 Inch

FinishColor

Black

FrequencyRating

60 Hz

OverallLength

14.40 Inch

Diameter

6-1/2 Inch

Item

Pool and Spa Pump Motor

ShaftLength

15/16 Inch

MotorThermalProtection

Auto

Bearing Type

Ball

EnclosureDesign

Open Dripproof

FlangeType

Square

Shipping Dimensions

22.00x11.00x9.50

Voltage

115V,230V

Shaft Diameter

0.625 inch

Application

Above Ground,Pool,Spa

Horsepower

1.5 horse power

Color

Black

Shaft Length

0.9375 inch

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Flange Type

Square

Shaft Material

303 Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

F

Service Factor

1.5

Motor Rating

Full-Rated

Motor Frame Size

56Y

Master Carton Quantity

1

Each Product Weight

37 pound

RPMs Min

3450

Shaft Design

1/2 Threaded

RPMs Max

3450

Selling Package Depth

9.5

Amps Low Speed

10.5

Minimum Sell Quantity

1

Efficiency Group

Standard

Frequency Rating (Hz)

60

Motor Shaft Rotation

Counterclockwise Pulley End

Amps High Speed

21

Standards Approvals

CSA Certified

Motor Thermal Protection

Automatic Reset

Frame Size

Y56Y

Product Overview

Century(R) Centurion(R) B2858 Square Flange Full-Rated Pool and Spa Pump Motor; 1.5 HP, 3450 RPM, 115/230 V, 56Y, Threaded Shaft
