Century(R) Flex 48 LASAR(R) BN50V1 Thru-Bolt 2-Speed Pool and Spa Pump Motor; 1.5 HP, 3450/1725 RPM, 115 V, 48Y, Threaded Shaft
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

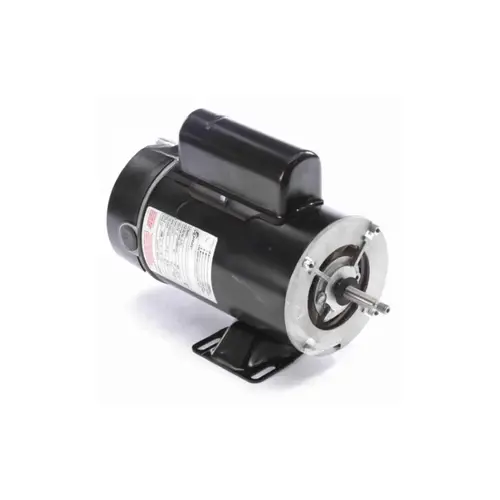

REGAL BELOIT BN50V1 Odp Thru-bolt Pool And Spa Pump Motor 1.5hp 115v Black
Item #: BN50V1 by Regal Beloit America Inc
UPC #: 786674056801
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Energy efficient
- 12 & 3 o'clock conduit entries
- Four thru bolts on a 5.146 bolt circle
- 48/56 Base mounting
- Run capacitor mounted on motor shell
- 3/8-16 UNC-2A RH threaded shaft
MotorShaftRotation
CCWSE
ServiceFactor
1.00
MotorDesign
Capacitor Start on Low Speed, PSC on High Speed
NumberofSpeed
2-Speed
MotorThermalProtection
Auto
ShaftHeight
3-1/2 Inch
ShaftDiameter
1/2 Inch
ShaftMaterial
Stainless Steel
ShaftLength
1-13/16 Inch
InsulationClass
B
ShaftDesign
Threaded
ThrustHorsepower
1.5
EnclosureDesign
Open Dripproof
VoltageRating
115 V
SubBrand
Century®
StandardsApprovals
UL 1081/1563 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008
MountingType
Thru-Bolt, Rigid Base
Item
Pool and Spa Pump Motor
HP
1.5
FullLoadAmps
13.5/4.7 A
FrequencyRating
60 Hz
FinishColor
Black
AmbientTemperature
40 deg C
Bearing Type
Ball
Department
PUMPS
Phase
1-Phase
Brand
Regal Beloit
OverallLength
13.21 Inch
Shipping Dimensions
19.50x9.25x11.25
Application
Spa, above ground swimming pool and jetted tub pumps
Frame
48Y
RPM
3450/1725
Diameter
5-5/8 Inch
Voltage
115v
Shaft Diameter
0.5 inch
Horsepower
1.5 horse power
Color
Black
Shaft Length
1.8125 inch
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Shaft Height
3.5 inch
Motor Speed
2-Speed
Shaft Material
Stainless Steel
Ambient temperature
40 degrees Celsius
Insulation Class
B
Service Factor
1
Motor Frame Size
48Y
Master Carton Quantity
1
Thrust HP
0.188
Each Product Weight
28 pound
RPMs Min
1725
Motor Capacitor Type
Start
Shaft Design
3/8 Threaded
Green or Energy Efficient Product
True
RPMs Max
3450
Selling Package Depth
11.25
Amps Low Speed
4.7
Minimum Sell Quantity
1
Frequency Rating (Hz)
60
Motor Shaft Rotation
Counterclockwise Shaft End
Amps High Speed
13.5
Standards Approvals
CSA Certified
Motor Thermal Protection
Automatic Reset
Frame Size
48Y
Product Overview
Century(R) Flex 48 LASAR(R) BN50V1 Thru-Bolt 2-Speed Pool and Spa Pump Motor; 1.5 HP, 3450/1725 RPM, 115 V, 48Y, Threaded Shaft
