Odp Keyed Pool Filter Motor 0.75hp 115/230v Satin Black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

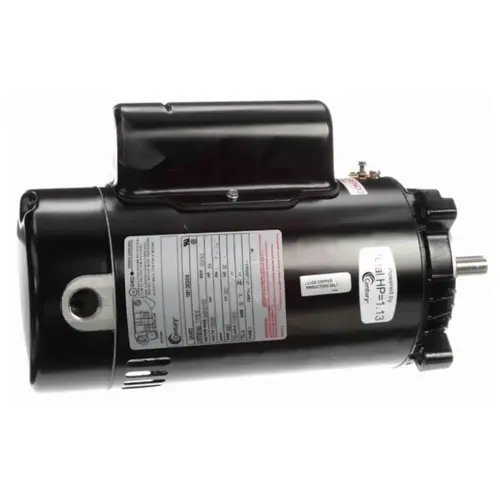

REGAL BELOIT CK1072 Odp Keyed Pool Filter Motor 0.75hp 115/230v Satin Black

Item #: CK1072 by Regal Beloit America Inc

UPC #: 786674017154

See reviewsSee reviews
See reviews summary

$440.49

/each
SAVE UP TO 44.05
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Sealed switch design
  • High service factor
  • Energy efficient "Conservationist™" motor
  • Eco-Friendly

VoltageRating

115/230 V

DutyCycle

Continuous

MotorDesign

Capacitor Start/Run

Frame

56C

FullLoadAmps

11.0/5.5 A

ServiceFactor

1.50

Brand

Regal Beloit

SubBrand

Century®

StandardsApprovals

UL Approved, UL Recognized (E20522), CSA Certified (LR43341)

AmbientTemperature

50 deg C

RPM

3450

ShaftDesign

Keyed

MotorShaftRotation

CCWPE

Phase

1-Phase

FlangeMaterial

Aluminum

Department

PUMPS

MountingType

C-Face

InsulationClass

B

EfficiencyGroup

High

ThrustHorsepower

1.13

HP

0.75

Type

Full-Rated, K

ShaftDiameter

5/8 Inch

FinishColor

Satin Black

FrequencyRating

60 Hz

NumberofSpeed

1-Speed

OverallLength

11.69 Inch

Diameter

6-1/2 Inch

Item

Two-Compartment Pool Filter Motor

ShaftLength

2-1/16 Inch

MotorThermalProtection

Auto

Bearing Type

Sealed Ball

EnclosureDesign

Open Dripproof

Shipping Dimensions

19.69x9.50x11.00

Voltage

115V,230V

Shaft Diameter

0.625 inch

Application

Pool

Horsepower

0.75 horse power

Color

Black

Shaft Length

2.0625 inch

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Motor Speed

1-Speed

Shaft Material

303 Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

B

Flange Material

Aluminum

Service Factor

1.5

Commercial, Residential, or Professional

Residential

Motor Frame Size

56C

Master Carton Quantity

1

Thrust HP

1.13

Each Product Weight

23 pound

RPMs Min

3450

Motor Capacitor Type

Start,Run

Shaft Design

Keyed

Green or Energy Efficient Product

True

RPMs Max

3450

Amps Low Speed

5.5

Minimum Sell Quantity

1

Efficiency Group

High

Frequency Rating (Hz)

60

Motor Shaft Rotation

Counterclockwise Pulley End

Amps High Speed

11

Standards Approvals

CSA Certified

Motor Thermal Protection

Automatic Reset

Product Overview

Century(R) CK1072 Full-Rated Two-Compartment Pool Filter Motor; 0.75 HP, 3450 RPM, 115/230 V, 56C, Keyed Shaft
